Thread: Shuttle mod to fit mini itx, I5, HD7870, atx power

  1. #1
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Shuttle mod to fit mini itx, I5, HD7870, atx power

    My pc is in a tower case, but want something smaller that can fit on motorbike. I have an old shuttle case (athlon xp1700) that looked about the right size for:

    Asrock Z77E-ITX
    I5 ivy bridge and standard cooler.
    800w atx power supply
    VTX HD7870 graphics

    Power supply fits in great. Drilled a couple holes to mount it above mb. MB fits great, its smaller than the shuttle board. Shuttle board does not have ATX mounting holes, so I made new ones. Case has two expansion slots so I thought graphics would fit - next time I will test mb and graphics for fit at the same time! I tried anyway, Moved mb over 3.5mm to the left = new holes, again. I cut out the expansion slot brackets and will fabricate new ones. However it still wont fit, about 5mm out - gfx card back plate and plastic shroud over cooler.





    Id say its a great idea if you dont have dual graphics, or have one of the more recent shuttle cases that are designed to fit a mini-itx board. I think I will buy a Cooler Master Elite 120 as it has tool-less HDD bays, any other suggestions?
    Last edited by SilentDeath; 01-02-2013 at 02:56 PM.

  2. Received thanks from:

    Pob255 (31-01-2013)

  3. #2
    Militant Battle Moose! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Planet Of The Moose
    Posts
    21,858
    Thanks
    2,307
    Thanked
    3,295 times in 2,552 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Here is my effort:

    CAT's mini-ITX rebuild!!









    The case was the one used in the SN41G2.

    I used one of these PSUs:

    http://www.ebay.co.uk/itm/SHUTTLE-PC...item23276b9741

  4. Received thanks from:

    Pob255 (31-01-2013),SilentDeath (31-01-2013)

  5. #3
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Interesting, looks good, but I dont like the fan Mine was a SN45G, so guessing same case before we started. Seeing yours has given me an idea how to get the graphics card under the lid, so I might keep it.

    Recommend a nibbler tool for cutting up cases/fan holes. I done mine with a hand nibbler, but want an electric drill attachment. Original PSU makes a tick noise and I remember the fan being noisey, so Im fitting my 800w ATX. It fits so well Im suprised they didnt use one as standard, has a 120 fan exhaust. Only problem is the back of my case is weak as I cut out all the support around graphics card. I made a bracket to attach the front left support to front of PSU so its not as weak as it looks.






    Would like to get a tool-less anti-vibration hdd bay to fit at the front, any ideas? I dont like the standard CD/HDD bays, take far too much space.

  6. #4
    Militant Battle Moose! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Planet Of The Moose
    Posts
    21,858
    Thanks
    2,307
    Thanked
    3,295 times in 2,552 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    What PSU are you using??

  7. #5
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    London
    Posts
    9,525
    Thanks
    500
    Thanked
    1,133 times in 1,046 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Acer P223w 22" TFT DVI

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Looks like you've fallen foul of one of the basic modder's, don't cut, measure twice, then measure again, once more to be sure, think about cutting, measure once more for luck, then cut.

    Nibblers are great on aluminium, not so for steel, it'll work but it requires far more effort, if the steel is thick prepare to suffer.

    With the amount you've cut out of the back it might be worth looking at putting some material back, Aluminium L section it good to create supports to add back strength, drill holes and pop rivet it in place.

    What are you going to do for drives? that psu is going to take up a lot of the front space with cables and it's size.
    The shuttle cases are a good bit shorter than a cooler master 120 and that's mainly down to the space need to fit in an ATX psu and all it's wires.
    An 800w psu is really total and wasteful overkill, 350w bequiet SFX psu would of been a better choice http://www.ebuyer.com/173801-be-quie...100x63mm-bn134 smaller and still enough to power an i5 and 7770

    Heat could become an issue for you, the psu and stock cooler are very close and will be pulling air against each other which could well leave one starved.

    I don't want to put you off modding, modding is the way forward in most high demand small form factor builds just think before you cut.
    I've been keeping an eye on ebay atm looking for a cheap shuttle so I can have a go at modding it for small form factor.

    @CAT, I see you've still not made that top fan hole bigger
    Last edited by Pob255; 31-01-2013 at 09:14 PM.

    Pob's new mod, Soviet Pob Propaganda style Laptop.
    "Are you suggesting that I can't punch an entire dimension into submission?" - Flying squirrel - The Red Panda Adventures

  8. #6
    Militant Battle Moose! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Planet Of The Moose
    Posts
    21,858
    Thanks
    2,307
    Thanked
    3,295 times in 2,552 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

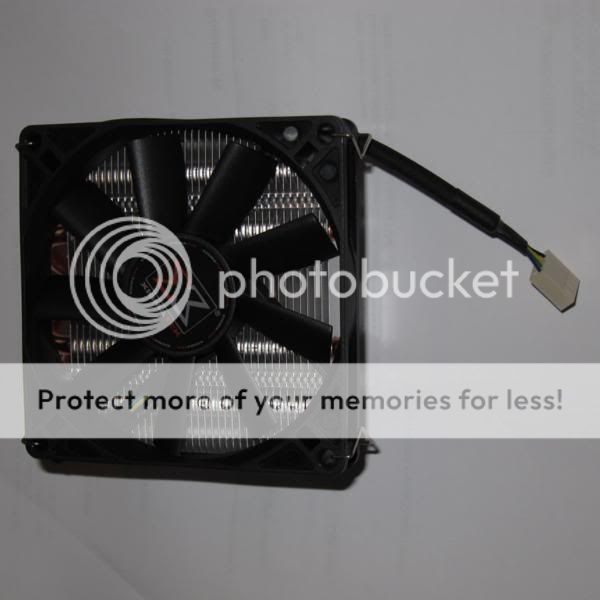

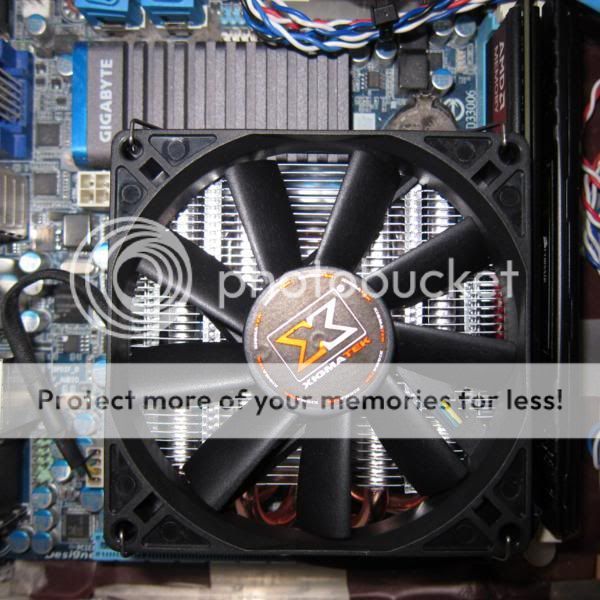

    BTW,Pob I got one of these coolers on my CPU now:

    http://www.amazon.co.uk/dp/B006FOND7...SIN=B006FOND7W

    It is a bit on the noisy side under full pelt,but the CPU under gaming load is usually under 60C now,instead of the 70C+ it used to be with the stock cooler.










    Edit!!

    I have this Noctua fan in my old SD37P2:

    http://www.scan.co.uk/products/92mm-...quiet-case-fan

    I wonder if it would do the trick??

    There is this new low profile fan they do too:

    http://www.scan.co.uk/products/92mm-...e-fan-case-fan

    Its the one they use on their new low profile CPU cooler.

  9. #7
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    London
    Posts
    9,525
    Thanks
    500
    Thanked
    1,133 times in 1,046 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Acer P223w 22" TFT DVI

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Well if you want to go the whole hog http://www.scan.co.uk/products/92mm-...e-fan-case-fan that's the on they use on the NH-L9 series low profile coolers, the blade design allows for higher static pressure

    But I didn't think you had any cpu clearance issues as you're still using a flex psu, aren't you?

    Pob's new mod, Soviet Pob Propaganda style Laptop.
    "Are you suggesting that I can't punch an entire dimension into submission?" - Flying squirrel - The Red Panda Adventures

  10. #8
    Militant Battle Moose! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Planet Of The Moose
    Posts
    21,858
    Thanks
    2,307
    Thanked
    3,295 times in 2,552 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Quote Originally Posted by Pob255 View Post
    Well if you want to go the whole hog http://www.scan.co.uk/products/92mm-...e-fan-case-fan that's the on they use on the NH-L9 series low profile coolers, the blade design allows for higher static pressure

    But I didn't think you had any cpu clearance issues as you're still using a flex psu, aren't you?
    The HDD slightly overhangs the cooler,as the socket is too near the front. I might attach a fan controller to see if I can turn the fan down a bit,. However,for £12.99 that is really good for a LP CPU IMHO. The one that replaced it actually has a quieter fan and slightly worse cooling.

  11. #9
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    haha, note my join date. You a bit late if you want to put me off modding Im tempted to get that CM case but I prefer alu.

    800w psu is not that bad, You realise it will only take power in proportion to what is demanded and possibly more efficient than cheap small psu. Has plenty of reserve and will power anything I can throw at it, quietely. It can also run 12v tools. I had it from my previous PC, so about 10 years old

    This case is not physically wide enough to fit a dual slot without cutting the lid. Cooling is no problem, Ive tested with the psu mounted and lid on. Works quite well now that I cleaned the dust out

    Ive got 95mm spare width at the front for a sideways HDD bay if anyone has ideas what will fit? (new or parts from ebay) preferably tool-less. Otherwise I will fabricate one. Should be *possible* to fit 3 drives and a SSD, but one or two is plenty. Needs to be cheap, though.
    Last edited by SilentDeath; 03-02-2013 at 12:49 AM.

  12. #10
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    London
    Posts
    9,525
    Thanks
    500
    Thanked
    1,133 times in 1,046 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Acer P223w 22" TFT DVI

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Umm not quite right below 20% load psu efficiency tends to drop off very fast, idle you'll be pulling under 100w full load around 250-300w

    What psu is it btw?

    HDD bay, personally I'd make one if you can, it's what I currently planing to do for my haf912, a hard drive bay really isn't complex to make, you could buy something and adapt it though.

    Pob's new mod, Soviet Pob Propaganda style Laptop.
    "Are you suggesting that I can't punch an entire dimension into submission?" - Flying squirrel - The Red Panda Adventures

  13. #11
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    Then it looks like Im making one

    Rails attach to HDD, 1/4" by 5mm thick, countersunk screws.
    HDD 15.5, s60, s41.5, 28.5mm
    Cage. disk width + 12mm. with 6mm rubber sheet between rails.
    Top side threaded hole to put pin through rails, locking them in place

    Material for rails? Ive got lots of scrap alu bar, no suitable plastics... but 7mm thick ebony from a scrap fret board. I like the idea of that.
    Last edited by SilentDeath; 01-02-2013 at 12:40 PM.

  14. #12
    I'm Very Important
    Join Date
    Jul 2009
    Posts
    2,439
    Thanks
    254
    Thanked
    271 times in 246 posts
    • Domestic_Ginger's system
      • Motherboard:
      • Gigabyte GA-MA770-UD3
      • CPU:
      • Phenom II X2 550
      • Memory:
      • 4GB DDR2
      • Storage:
      • F3 500gb
      • Graphics card(s):
      • 5850
      • PSU:
      • Corsair 550vx
      • Case:
      • NZXT beta evo
      • Operating System:
      • W7
      • Monitor(s):
      • G2222HDL

    Re: Failed shuttle mod to fit mini itx, I5, HD7870, atx power

    @Mooseman. I thin kI read somewhere that if you flip the fan over it works better. pointing down it keeps pumping the same air round and round.

  15. Received thanks from:

    CAT-THE-FIFTH (01-02-2013)

  16. #13
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Shuttle mod to fit mini itx, I5, HD7870, atx power

    Made support bracket, but need case empty to fit


  17. #14
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Shuttle mod to fit mini itx, I5, HD7870, atx power

    Its done, mostly. Got to make lid fit round graphics card, as it sticks out 5mm. Then HDD bays, and sort cables. The 6 power cables sitting on my HDD are unused - plan to chop about 4" from psu, fit mini-amp-and-lock connectors to them, one to mount on front panel for powering external drives. I might also chop the sata connectors for 90 degree ones, they annoy me.

    I cant recommend this motherboard enough, even for a full size pc. Its so easy to fit and I cant find any flaws with it. I can name hundred flaws in previous DFI ultra 4, abit nf7-s.
















    Even with everything in case I have 110mm of CD bay empty, that can fit 2 HDD's. With the right cables I could fit 5 HDD's and an SSD in the front of this case ! not that Im going to as access would get difficult. If I did not need 2 hdd's I could have shortened the case by 2 inches.
    Last edited by SilentDeath; 03-02-2013 at 03:09 PM.

  18. #15
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    London
    Posts
    9,525
    Thanks
    500
    Thanked
    1,133 times in 1,046 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Acer P223w 22" TFT DVI

    Re: Shuttle mod to fit mini itx, I5, HD7870, atx power

    nice I'd consider cutting a hole in the side of the cover, over the gpu fan, then cover it up with a wire grill or a filter eg http://www.specialtech.co.uk/spshop/...pid-15055.html (i'm pretty sure that's an 80mm fan on the gpu)

    Pob's new mod, Soviet Pob Propaganda style Laptop.
    "Are you suggesting that I can't punch an entire dimension into submission?" - Flying squirrel - The Red Panda Adventures

  19. #16
    Senior Member SilentDeath's Avatar
    Join Date
    Aug 2003
    Posts
    4,745
    Thanks
    38
    Thanked
    16 times in 11 posts

    Re: Shuttle mod to fit mini itx, I5, HD7870, atx power

    Yeah i was intending to do that. I had a few minutes spare so cut a few holes today. tape is temporary. Cover will be made stronger, so that its ok strapped onto bike.
