Thread: Need to lose 200 rpms.

  1. #1
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Need to lose 200 rpms.

    Hi guys,these are the 3 things i have,all from zalman

    ZM-MFC3


    ZM-RC56


    ZM-F3 LED



    the problem i'm having is the pwm fan connector on the fan controller.
    I want the fan to run off of the controller but at 800 rpm,which is my "happy noise",at the moment using the ZM-RC56 (middle picture) its running at just over 1000 rpm which is only 200 rpm but enough to annoy me.
    I tried a proper PWM fan but found the high pitched whine louder than the actual fan .
    What could i do to lower the rpm's by another 200 ?
    Bear in mind the other 3 connectors are controlling differing fans so i can't add this one fan onto a split cable.
    I'm seriously looking at buying a cheap n nasty fan controller from elsewhere just for this one fan.
    Thoughts and help appreciated.

  2. #2
    Big, Mean and Ugly! circuitmonkey's Avatar
    Join Date
    May 2008
    Location
    Wiltshire
    Posts
    912
    Thanks
    63
    Thanked
    98 times in 92 posts
    • circuitmonkey's system
      • Motherboard:
      • Asus P8H61-M PRO
      • CPU:
      • Intel Core i3 2100T
      • Memory:
      • Corsair 8GB (2x4GB) DDR3 1333MHz XMS3
      • Storage:
      • 320GB WD Caviar Balck + 1TB Samsung EcoGreen F2 + 1TB Samsung F3
      • Graphics card(s):
      • Nvidia 750Ti
      • PSU:
      • Corsair CX430M
      • Case:
      • NZXT M59
      • Operating System:
      • Windows 7 Pro (64bit), Vista business (64 bit), XP Pro (32bit), Ubuntu (64 bit)
      • Monitor(s):
      • 24" FHD + 2X 19"1280 x 1024
      • Internet:
      • BT Fibre broadband

    Re: Need to lose 200 rpms.

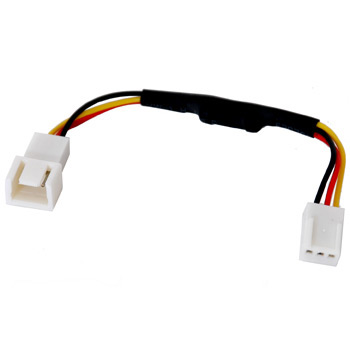

    Replace the resistor in the ZM-RC56 with one of a higher resistance, currently in there is a 56ohm I think, try a 68 ohm instead
    should only cost a couple of pence if you go into maplin

  3. Received thanks from:

    Chunter (20-01-2010)

  4. #3
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Re: Need to lose 200 rpms.

    ok,i'll have a look at maplins website and ask my dad to go round and get one,i'm in Germany and they have a distinct lack of maplins and i have no idea how to ask for one in German.

  5. #4
    Big, Mean and Ugly! circuitmonkey's Avatar
    Join Date
    May 2008
    Location
    Wiltshire
    Posts
    912
    Thanks
    63
    Thanked
    98 times in 92 posts
    • circuitmonkey's system
      • Motherboard:
      • Asus P8H61-M PRO
      • CPU:
      • Intel Core i3 2100T
      • Memory:
      • Corsair 8GB (2x4GB) DDR3 1333MHz XMS3
      • Storage:
      • 320GB WD Caviar Balck + 1TB Samsung EcoGreen F2 + 1TB Samsung F3
      • Graphics card(s):
      • Nvidia 750Ti
      • PSU:
      • Corsair CX430M
      • Case:
      • NZXT M59
      • Operating System:
      • Windows 7 Pro (64bit), Vista business (64 bit), XP Pro (32bit), Ubuntu (64 bit)
      • Monitor(s):
      • 24" FHD + 2X 19"1280 x 1024
      • Internet:
      • BT Fibre broadband

    Re: Need to lose 200 rpms.

    Quote Originally Posted by Chunter View Post
    ok,i'll have a look at maplins website and ask my dad to go round and get one,i'm in Germany and they have a distinct lack of maplins and i have no idea how to ask for one in German.
    I'm not sure they do resistors individually on their website. ask your dad to go in store and ask, they should sell them individually in their shops, and whilst he's there, I'd get him to pick up a couple more higher resistance resistors, just in case the 64ohm doesn't cut it

  6. Received thanks from:

    Chunter (08-02-2010)

  7. #5
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Re: Need to lose 200 rpms.

    ok i put a 64 ohm one in and it didn't change anything ,appears to be quieter but the fan readout stays the same.it might be the fact that its attached to the pwm connector by 3 fans instead of 4,i dunno,suppose i'll have to get another one with a higher value.

  8. #6
    Gundam Infinite's Avatar
    Join Date
    Jun 2008
    Location
    Southport
    Posts
    1,647
    Thanks
    150
    Thanked
    122 times in 93 posts
    • Infinite's system
      • Motherboard:
      • MSI GD80
      • CPU:
      • Intel i5 750
      • Memory:
      • Kingston 16GB
      • Storage:
      • 120GB OCZ Agility 3
      • Graphics card(s):
      • GTX 460 SLI
      • PSU:
      • Corsair HX 650W
      • Case:
      • Silverstone TJ09B-W
      • Operating System:
      • Windows 7 Pro - 64-bit
      • Monitor(s):
      • Dell S2309W
      • Internet:
      • Infinity

    Re: Need to lose 200 rpms.

    I got a few of these hooked up to mine. http://www.scan.co.uk/Products/Zalma...our-3-pin-Fan) Sets it down to 5V. According to my motherboard sensors my fans are now spinning at 750 rpm down from the original 12V 1500rpm. http://www.scan.co.uk/Products/Xigma...-F1253-LED-FAN

  9. #7
    WEEEEEEEEEEEEE! MadduckUK's Avatar
    Join Date
    May 2006
    Location
    Lytham St. Annes
    Posts
    17,297
    Thanks
    653
    Thanked
    1,580 times in 1,006 posts
    • MadduckUK's system
      • Motherboard:
      • MSI B450M Mortar
      • CPU:
      • AMD Ryzen 5 3600
      • Memory:
      • 32GB 3200 DDR4
      • Storage:
      • 1x480GB SSD, 1x 2TB Hybrid, 1x 3TB Rust Spinner
      • Graphics card(s):
      • Radeon 5700XT
      • PSU:
      • Corsair TX750w
      • Case:
      • Phanteks Enthoo Evolv mATX
      • Operating System:
      • Windows 10 x64
      • Monitor(s):
      • Samsung SJ55W, DELL S2409W
      • Internet:
      • Plusnet 80

    Re: Need to lose 200 rpms.

    Quote Originally Posted by Ephesians
    Do not be drunk with wine, which will ruin you, but be filled with the Spirit
    Vodka

  10. #8
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Need to lose 200 rpms.

    Quote Originally Posted by MadduckUK View Post
    Umm from what I understand he's alredy got the ZM-MFC3 fan controller.

    Umm I'm not sure how you've got this set up are you running the fan via the resistor adaptor to the fan controller?
    Or are you just running it to the motherboard via the resistor adaptor?

    The problem you may hit is the ZM-RC56 already brings the voltage down to 5volts increasing the resistance may drop the fan below the minimum voltage it needs to actually start.

    Your best bet is to replace the fan with one that has a lower rpm to start with.
    From my look at verying cheap LED fans I found the Coolermaster one to be very good
    http://www.eclipsecomputers.com/prod...de=HFC-CASE12B (although I got mine off of fleabay for about £6) even when I droped it down to 5v there was virtually no motor noise. (I had to hold my ear within a couple of cm to hear a slight ticking)
    http://forums.hexus.net/chassis-syst...ml#post1860596

  11. #9
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Re: Need to lose 200 rpms.

    yea i have the resistor connected between the fan and the ZM-MFC3 fan controller,whilst not that loud at 1000 rpm, i can hear the extra 200 rpms of air being pushed through.I've always tried to run my fans at 800 to keep the noise down,looks like i may have to buy another controller of sort.
    It must be something to do with hooking a non pwm fan up to the pwm connector on the controller.

  12. #10
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Need to lose 200 rpms.

    If you just plug the fan into the controller how far can you lower it?

    I doubt a different controller will help because all you will be doing is lowering the voltage and there's a good chance you'll hit the point where the voltage is too low to start the fan before you get to the 800rpm you desire.

  13. #11
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Re: Need to lose 200 rpms.

    ok i think we have a slight miscommunication here.
    the fan is plugged into the pwm port of the fan controller but it is not a pwm fan.
    the manual states that rpm control is not available when a 3 pin fan is plugged into the pwm port.
    however it does show the rpm that its running at.
    what i need is a way to lower the rpm so that it shows 800 rpm instead of the 1040 its now running at with the new resistor as suggested.
    if i use the fan in a normal 3 pin port on the controller it will go as low as 700 quite happily.
    maybe another resistor is needed to lower it to 800 rpm but i have no idea of these things.
    Thanks for all the help btw.

  14. #12
    Big, Mean and Ugly! circuitmonkey's Avatar
    Join Date
    May 2008
    Location
    Wiltshire
    Posts
    912
    Thanks
    63
    Thanked
    98 times in 92 posts
    • circuitmonkey's system
      • Motherboard:
      • Asus P8H61-M PRO
      • CPU:
      • Intel Core i3 2100T
      • Memory:
      • Corsair 8GB (2x4GB) DDR3 1333MHz XMS3
      • Storage:
      • 320GB WD Caviar Balck + 1TB Samsung EcoGreen F2 + 1TB Samsung F3
      • Graphics card(s):
      • Nvidia 750Ti
      • PSU:
      • Corsair CX430M
      • Case:
      • NZXT M59
      • Operating System:
      • Windows 7 Pro (64bit), Vista business (64 bit), XP Pro (32bit), Ubuntu (64 bit)
      • Monitor(s):
      • 24" FHD + 2X 19"1280 x 1024
      • Internet:
      • BT Fibre broadband

    Re: Need to lose 200 rpms.

    I was inspired and annoyed at the sounds coming from my new case (NZXT M59).
    I had filled all the fan mounts with blue led 120mm fans and had already ran the two top fans off of a molex with a 5v mod, but it was the two standard NZXT fans that came with the case that where annoying me so I decided to do something about it

    Both my NZXT fans where plugged into my mobo headers and speedfan was reporting around 1300RPM.
    I had a rummage around in my parts draw and found some 100 ohm resisters.
    I put them in series on the +ve line of the fans (middle, red wire) and now the fans have been reduced to around 800RPM

    Now there is still some fan noise, but its to an unobtrusive level.

    Hope this can be of some help to our OP

  15. #13
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Need to lose 200 rpms.

    Quote Originally Posted by circuitmonkey View Post
    I was inspired and annoyed at the sounds coming from my new case (NZXT M59).
    I had filled all the fan mounts with blue led 120mm fans and had already ran the two top fans off of a molex with a 5v mod, but it was the two standard NZXT fans that came with the case that where annoying me so I decided to do something about it

    Both my NZXT fans where plugged into my mobo headers and speedfan was reporting around 1300RPM.
    I had a rummage around in my parts draw and found some 100 ohm resisters.
    I put them in series on the +ve line of the fans (middle, red wire) and now the fans have been reduced to around 800RPM

    Now there is still some fan noise, but its to an unobtrusive level.

    Hope this can be of some help to our OP
    Don't want to hijack but what fans are you using?

  16. #14
    Big, Mean and Ugly! circuitmonkey's Avatar
    Join Date
    May 2008
    Location
    Wiltshire
    Posts
    912
    Thanks
    63
    Thanked
    98 times in 92 posts
    • circuitmonkey's system
      • Motherboard:
      • Asus P8H61-M PRO
      • CPU:
      • Intel Core i3 2100T
      • Memory:
      • Corsair 8GB (2x4GB) DDR3 1333MHz XMS3
      • Storage:
      • 320GB WD Caviar Balck + 1TB Samsung EcoGreen F2 + 1TB Samsung F3
      • Graphics card(s):
      • Nvidia 750Ti
      • PSU:
      • Corsair CX430M
      • Case:
      • NZXT M59
      • Operating System:
      • Windows 7 Pro (64bit), Vista business (64 bit), XP Pro (32bit), Ubuntu (64 bit)
      • Monitor(s):
      • 24" FHD + 2X 19"1280 x 1024
      • Internet:
      • BT Fibre broadband

    Re: Need to lose 200 rpms.

    Quote Originally Posted by Pob255 View Post
    Don't want to hijack but what fans are you using?
    The fans that I hacked where the NZXT 120mm fans that came with the case, I'm afraid I don't have any more info but whats on their website:

    "Immense Performance: 5 fan capability (side 120mm LED and rear 120mm exhaust included) Included 9-fin rifle bearing NZXT fans rated at 42CFM and 23db"

    The rest of the mounts are populated by two 120mm blue LED Coolermaster fans. they are a couple years old but look similar to the ones in your fan round up. I've just remembered that the front fan mount is populated by a non led 120mm Coolermaster. This might have to be changed! maybe I'll have to take one of your spares off your hands when your finished with you tests (any thing from the 2nd test would be nice)

  17. #15
    Registered+
    Join Date
    Jan 2008
    Posts
    63
    Thanks
    5
    Thanked
    7 times in 5 posts
    • Chunter's system
      • Motherboard:
      • EVGA X58 Sli LE
      • CPU:
      • i7 920 Do
      • Memory:
      • OCZ3G1600LV6GK
      • Storage:
      • Samsung HD322HJ
      • Graphics card(s):
      • Gigabyte GTX285 in sli
      • PSU:
      • ZM750-HP
      • Case:
      • Thermaltake Kandalf
      • Operating System:
      • Windows 7 Home
      • Monitor(s):
      • Samsung 2232bw
      • Internet:
      • Unity Media 20meg Cable

    Re: Need to lose 200 rpms.

    have a rummage around and see if you have any 100 ohm resistors left

  18. #16
    HEXUS.timelord. Zak33's Avatar
    Join Date
    Jul 2003
    Location
    I'm a Jessie
    Posts
    35,157
    Thanks
    3,105
    Thanked
    3,138 times in 1,916 posts
    • Zak33's system
      • Storage:
      • Kingston HyperX SSD, Hitachi 1Tb
      • Graphics card(s):
      • Nvidia 1050
      • PSU:
      • Coolermaster 800w
      • Case:
      • Silverstone Fortress FT01
      • Operating System:
      • Win10
      • Internet:
      • Zen FTC uber speedy

    Re: Need to lose 200 rpms.

    Sharkoon make one

    12v down to 9.5v
    http://www.scan.co.uk/Products/Shark...-RPM-and-Noise)


    £1.50 plus postage.

    Quote Originally Posted by Advice Trinity by Knoxville
    "The second you aren't paying attention to the tool you're using, it will take your fingers from you. It does not know sympathy." |
    "If you don't gaffer it, it will gaffer you" | "Belt and braces"

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Similar Threads

  1. Ageia PhysX
    By jonny4288 in forum SCAN.care@HEXUS
    Replies: 56
    Last Post: 12-04-2006, 09:55 AM
  2. Totally Free Nokia 3120 - 200 mins 200 txt a month.
    By MD in forum Retail Therapy and Bargains
    Replies: 5
    Last Post: 07-04-2005, 05:30 PM
  3. vodafone 200 x net mins one off payment £49
    By Creature in forum Retail Therapy and Bargains
    Replies: 14
    Last Post: 16-06-2004, 01:23 PM

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
