    Heatguns for heatshrinking

    Can people share or suggest what type of Heatgun you use for Heat Shrinking.

    I been looking at them Heat-it-up guns like shown here: http://www.amazon.co.uk/Heat-It-Up-Tool/dp/B0025TJVI6

    Find lots of them on eBay, do you think they are ok?

  2. #2
    Senior Member
    Join Date
    Oct 2004
    Posts
    1,731
    Thanks
    230
    Thanked
    151 times in 132 posts
    • Sputnik's system
      • Motherboard:
      • J&W 790GX Extreme
      • CPU:
      • AMD Phenom II 720be
      • Memory:
      • OCZ DDR2-6400
      • PSU:
      • Enermax

    Re: Heatguns for heatshrinking

    Not got any experience of them ones, I use a normal Heatgun for heat shrink myself. You need alot of heat for it to shrink, Far more than a hair dryer can provide.

  3. Received thanks from:

    IronWarrior (27-01-2012)

  4. #3
    Oh Crumbs.... Biscuit's Avatar
    Join Date
    Feb 2007
    Location
    N. Yorkshire
    Posts
    11,193
    Thanks
    1,394
    Thanked
    1,091 times in 833 posts
    • Biscuit's system
      • Motherboard:
      • MSI B450M Mortar
      • CPU:
      • AMD 2700X (Be Quiet! Dark Rock 3)
      • Memory:
      • 16GB Patriot Viper 2 @ 3466MHz
      • Storage:
      • 500GB WD Black
      • Graphics card(s):
      • Sapphire R9 290X Vapor-X
      • PSU:
      • Seasonic Focus Gold 750W
      • Case:
      • Lian Li PC-V359
      • Operating System:
      • Windows 10 x64
      • Internet:
      • BT Infinity 80/20

    Re: Heatguns for heatshrinking

    I got one like this: http://www.thatcable.com/product/Min...-Torch-Hot-Air

    But off ebay for quitea bit less, cant seem to find one now though. Certainly does the job well without damaging the cable

  5. Received thanks from:

    IronWarrior (27-01-2012)

  6. #4
    Senior Member oolon's Avatar
    Join Date
    Mar 2007
    Location
    London
    Posts
    2,294
    Thanks
    150
    Thanked
    302 times in 248 posts
    • oolon's system
      • Motherboard:
      • Asus P6T6
      • CPU:
      • Xeon w3680
      • Memory:
      • 3*4GB Kingston ECC
      • Storage:
      • 160GB Intel G2 SSD
      • Graphics card(s):
      • XFX HD6970 2GB
      • PSU:
      • Corsair HX850
      • Case:
      • Antec P183
      • Operating System:
      • Windows 7 Ultimate and Centos 5
      • Monitor(s):
      • Dell 2408WFP
      • Internet:
      • Be* Unlimied 6 down/1.2 up

    Re: Heatguns for heatshrinking

    I have a hot air paint stripper that works perfectly well. The only different is the size of the end being larger, its never been a problem for me.
    (\__/) All I wanted in the end was world domination and a whole lot of money to spend. - NMA
    (='.*=)
    (")_(*)

  7. Received thanks from:

    IronWarrior (27-01-2012)

  8. #5
    Bagnaj97
    Guest

    Re: Heatguns for heatshrinking

    I just hold a lighter under the heatshrink

    Not broken anything yet...

  9. Received thanks from:

    IronWarrior (27-01-2012)

  10. #6
    Senior Member oolon's Avatar
    Join Date
    Mar 2007
    Location
    London
    Posts
    2,294
    Thanks
    150
    Thanked
    302 times in 248 posts
    • oolon's system
      • Motherboard:
      • Asus P6T6
      • CPU:
      • Xeon w3680
      • Memory:
      • 3*4GB Kingston ECC
      • Storage:
      • 160GB Intel G2 SSD
      • Graphics card(s):
      • XFX HD6970 2GB
      • PSU:
      • Corsair HX850
      • Case:
      • Antec P183
      • Operating System:
      • Windows 7 Ultimate and Centos 5
      • Monitor(s):
      • Dell 2408WFP
      • Internet:
      • Be* Unlimied 6 down/1.2 up

    Re: Heatguns for heatshrinking

    Actually before I used the paint stripper, I used the side of the rod of a soldering iron, which worked fine just did not look that even.
    (\__/) All I wanted in the end was world domination and a whole lot of money to spend. - NMA
    (='.*=)
    (")_(*)

  11. Received thanks from:

    IronWarrior (27-01-2012)

  12. #7
    Admin (Ret'd)
    Join Date
    Jul 2003
    Posts
    18,481
    Thanks
    1,016
    Thanked
    3,208 times in 2,281 posts

    Re: Heatguns for heatshrinking

    Quote Originally Posted by oolon View Post
    I have a hot air paint stripper that works perfectly well. The only different is the size of the end being larger, its never been a problem for me.
    Ditto, but my paint-stripper has several nozzles, including a flat-but wide one, and a round but small one. Works a treat.

  13. Received thanks from:

    IronWarrior (27-01-2012)

  14. #8
    Senior Member kopite's Avatar
    Join Date
    Sep 2006
    Location
    Liverpool
    Posts
    3,491
    Thanks
    80
    Thanked
    157 times in 126 posts
    • kopite's system
      • Motherboard:
      • Asus Maximus IV Gene-Z
      • CPU:
      • Intel Core i5 2500K
      • Memory:
      • 8GB DDR3 1600 MHz Corsair Memory Vengeance Black
      • Storage:
      • 128GB Crucial m4 for main drive. 3.5 TB of storage space over western Digital Drives
      • Graphics card(s):
      • Gigabyte NVIDIA GTX 970 G1 Gaming Edition
      • PSU:
      • 750W ANTEC TRUEPOWER
      • Case:
      • Silverstone Fortress FT03
      • Operating System:
      • Windows 10
      • Monitor(s):
      • 1 x 27 inch dell Monitor 1 x 20 inch Dell monitor
      • Internet:
      • Virgin media 150MB

    Re: Heatguns for heatshrinking

    Quote Originally Posted by oolon View Post
    Actually before I used the paint stripper, I used the side of the rod of a soldering iron, which worked fine just did not look that even.
    Thats what I`ve always done and never had any problems.

  15. Received thanks from:

    IronWarrior (27-01-2012)

  16. #9
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Heatguns for heatshrinking

    I've mainly used a lighter, it doesn't always work that neatly, although a lot is down to getting the correct sized heat shrink and not overheating one side.

    If you use a heat gun, then it generally best to clamp/mount it in a position pointing up, this leaves your hands free to "twiddle" the thing being shrunk in the hot air flow.

  17. Received thanks from:

    IronWarrior (27-01-2012)

  18. #10
    Kendoka - Kendo For Life! IronWarrior's Avatar
    Join Date
    Mar 2009
    Posts
    931
    Thanks
    63
    Thanked
    60 times in 49 posts

    Re: Heatguns for heatshrinking

    Does a proper paint stripper or standard heat gun really work? I thought they might be too powerfully that could could damage it, burn you or something else.

    Pob255m, that's a good suggestion, I was worried how I was going to manage to turn it without burning my hands off.

    So, what wattage do you need to shrink the plastic than?

    I'm also looking at this as well, seems to have two heat settings, but I seen some with four heat settings, how much heat do you need? http://www.ebay.co.uk/itm/HOT-AIR-HE...item20c017ef50 and http://www.ebay.co.uk/itm/HOT-AIR-HE...item1e67de1a02

    Both seem to be the same but different colours. o.O
    Last edited by IronWarrior; 27-01-2012 at 07:34 PM.

  19. #11
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Heatguns for heatshrinking

    The first one has nozzles so that would be my pick.

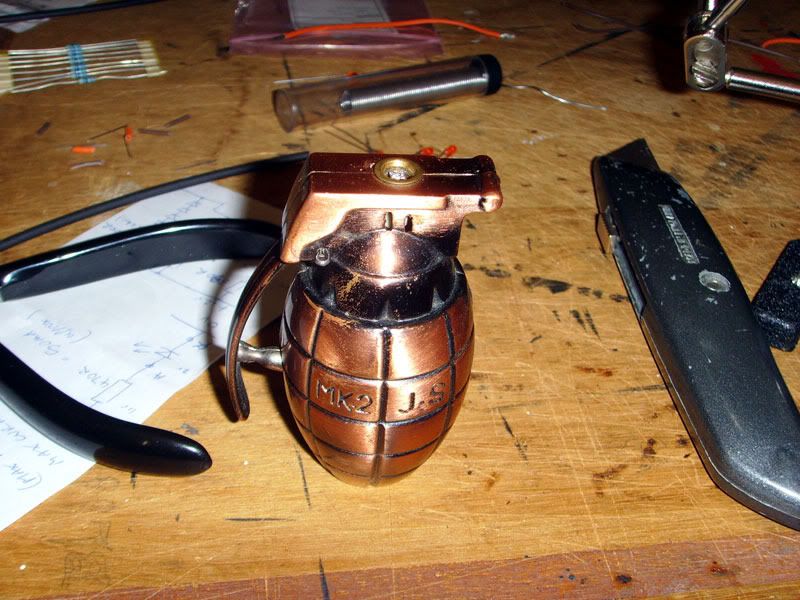

    Although generally I just use a lighter, normally I use my novelty hand grenade lighter, it was a promotional freebee from NovaLogic for the game Armored Fist 3

    It's one of the type of lighter that uses a catalyst coil so the flame burns blue (hotter)

    If you keep the heat too long or in one place you can damage both the insulation and heat shrink.
    Or any other plastic thing in the path of the heat.

    Remember it's easy to vary the heat level simply by the distance you hold the the thing your heat shrinking from the end of the heat gun and how long you keep it in the heat.

    Most heat shrink starts to shrink at around 110-125c

    Also be aware on the ratio, 3:1 or 4:1 is generally best, depends on what you're heat shrinking.

  20. #12
    Oh Crumbs.... Biscuit's Avatar
    Join Date
    Feb 2007
    Location
    N. Yorkshire
    Posts
    11,193
    Thanks
    1,394
    Thanked
    1,091 times in 833 posts
    • Biscuit's system
      • Motherboard:
      • MSI B450M Mortar
      • CPU:
      • AMD 2700X (Be Quiet! Dark Rock 3)
      • Memory:
      • 16GB Patriot Viper 2 @ 3466MHz
      • Storage:
      • 500GB WD Black
      • Graphics card(s):
      • Sapphire R9 290X Vapor-X
      • PSU:
      • Seasonic Focus Gold 750W
      • Case:
      • Lian Li PC-V359
      • Operating System:
      • Windows 10 x64
      • Internet:
      • BT Infinity 80/20

    Re: Heatguns for heatshrinking

    4:1 is quite hard to find. I have got some 3:1 stuff from Conrad It took a while to arrive, but it seems like pretty good stuff.
    I have used this guys ebay shop aswell. http://www.heatshrink-online.co.uk/ Heatshirink wasnt as good but the service was really good!

    I see there has been no mention of my lighter heatgun... its seriously worth considering, works really well!

  21. #13
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    10,128
    Thanks
    605
    Thanked
    1,220 times in 1,121 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • FX8350 & CM Hyper 212+
      • Memory:
      • 4 x 2gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 512gb samsung SSD +1tb Samsung HDD
      • Graphics card(s):
      • EGVA GTX970
      • PSU:
      • Seasonic GX 650W
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • iiyama XB3270QS-B1 32" IPS 1440p

    Re: Heatguns for heatshrinking

    Quote Originally Posted by Biscuit View Post
    I see there has been no mention of my lighter heatgun... its seriously worth considering, works really well!
    Yes it seem interesting, but I cannot help wondering how much better is it than just using a lighter?

    And at £20?

  22. #14
    Oh Crumbs.... Biscuit's Avatar
    Join Date
    Feb 2007
    Location
    N. Yorkshire
    Posts
    11,193
    Thanks
    1,394
    Thanked
    1,091 times in 833 posts
    • Biscuit's system
      • Motherboard:
      • MSI B450M Mortar
      • CPU:
      • AMD 2700X (Be Quiet! Dark Rock 3)
      • Memory:
      • 16GB Patriot Viper 2 @ 3466MHz
      • Storage:
      • 500GB WD Black
      • Graphics card(s):
      • Sapphire R9 290X Vapor-X
      • PSU:
      • Seasonic Focus Gold 750W
      • Case:
      • Lian Li PC-V359
      • Operating System:
      • Windows 10 x64
      • Internet:
      • BT Infinity 80/20

    Re: Heatguns for heatshrinking

    Hmmm i should maybe do a comparison video or something.

    The main difference would be that instead of the actual flame touching the heatshrink, and risking perishing of the plastic, it is just a blast of heat.

    I payed £15 delivered for mine a while ago

  23. #15
    Studmuffin Flibb's Avatar
    Join Date
    Jul 2003
    Location
    Kent
    Posts
    4,904
    Thanks
    31
    Thanked
    324 times in 277 posts
    • Flibb's system
      • Motherboard:
      • Gigabyte GA-970A-UD3
      • CPU:
      • AMD FX-6300
      • Memory:
      • 16GB Crucial Ballistix DDR3 PC3-12800
      • Storage:
      • Samsung SSD 840 EVO 250G
      • Graphics card(s):
      • 3GB MSI Radeon HD 7950 Twin Frozr
      • PSU:
      • FSP
      • Operating System:
      • Win7 64bit
      • Monitor(s):
      • Deffl TFT thing

    Re: Heatguns for heatshrinking

    I have a gas soldering iron, one of the adapters that came with it is a heat nozel, woks very well on heatshrink. Maplins often have the gas soldering irons on offer.

  24. #16
    Grumpy and VERY old :( g8ina's Avatar
    Join Date
    Nov 2006
    Location
    Northampton
    Posts
    6,622
    Thanks
    2,465
    Thanked
    1,555 times in 1,046 posts
    • g8ina's system
      • Motherboard:
      • ASRock Z75 Pro3
      • CPU:
      • Intel(R) Core(TM) i5-3570K CPU @ 3.40GHz 3.40 GHz
      • Memory:
      • 16GB Corsair 1600MHz DDR3.
      • Storage:
      • 250GB SSD system, 250GB SSD Data + 2TB data, + 8TB NAS
      • Graphics card(s):
      • XFX Radeon HD 6870
      • Case:
      • Coolermaster Elite 430
      • Operating System:
      • Win10
      • Monitor(s):
      • Iiyama 22"
      • Internet:
      • Virgin 100MB unlimited

    Re: Heatguns for heatshrinking

    Steam from a kettle works for me
    Cheers, David
