Thread: Playstation 3 Cables.....

  1. #1
    Senior Member
    Join Date
    Sep 2004
    Posts
    1,010
    Thanks
    6
    Thanked
    9 times in 9 posts

    Playstation 3 Cables.....

    Hello, I have just bought a Playstation 3 as it was really cheap (£165 with receipt + 2 games), and have a dilema as to what connections to use.

    I have a Dell 2005FPW Widescreen 20" LCD Monitor, I know it is very old but for me it still has a very decent picture.

    The connections it has are, VGA, DVI, Composite and S-Video.

    I am using DVI already as it is connected up to my PC, and the S-Video is connected up to my freeview box.

    So I have composite and VGA left. I have connected the PS3 upto via the composite cable (yellow) and I have to say that the picture is shocking as I would have expected.

    Still, I think that there is something wrong with the settings, I have played around with them but the picture via the Composite is still shocking, is there a special setting I need to change as my monitor is a TFT PC one rather than a television?

    What cables can I use to connect it up with?

    I know nothing about PS3's as it was an impulse buy so any help would be much appreciated.

  2. #2
    Senior Member Blackmage's Avatar
    Join Date
    Sep 2005
    Location
    London
    Posts
    1,934
    Thanks
    202
    Thanked
    65 times in 45 posts
    • Blackmage's system
      • Motherboard:
      • MSI P67-GD65
      • CPU:
      • Intel Core I7 2600k
      • Memory:
      • 8 Gb Hynix DDR3 1333
      • Storage:
      • Crucial m4 120Gb, 2TB Samsung F4
      • Graphics card(s):
      • ATI HD5830
      • PSU:
      • 700w Coolermaster Gold Plus
      • Case:
      • Xclio/Aplus Windtunnel
      • Operating System:
      • Windows 7 Professional
      • Monitor(s):
      • Viewsonic VX2239WM 22" LCD Monitor
      • Internet:
      • Virgin Broadband 10mbit

    Re: Playstation 3 Cables.....

    PS3 uses HDCP and your monitor has no component, so your kinda stuck. Does you monitor support HDCP via DVI

  3. #3
    Comfortably Numb directhex's Avatar
    Join Date
    Jul 2003
    Location
    /dev/urandom
    Posts
    17,074
    Thanks
    228
    Thanked
    1,027 times in 678 posts
    • directhex's system
      • Motherboard:
      • Asus ROG Strix B550-I Gaming
      • CPU:
      • Ryzen 5900x
      • Memory:
      • 64GB G.Skill Trident Z RGB
      • Storage:
      • 2TB Seagate Firecuda 520
      • Graphics card(s):
      • EVGA GeForce RTX 3080 XC3 Ultra
      • PSU:
      • EVGA SuperNOVA 850W G3
      • Case:
      • NZXT H210i
      • Operating System:
      • Ubuntu 20.04, Windows 10
      • Monitor(s):
      • LG 34GN850
      • Internet:
      • FIOS

    Re: Playstation 3 Cables.....

    no, the 2007 is needed for HDCP

    the 2005 is generally unsupported in HD mode

  4. #4
    Senior Member
    Join Date
    Sep 2004
    Posts
    1,010
    Thanks
    6
    Thanked
    9 times in 9 posts

    Re: Playstation 3 Cables.....

    Bah, so I need to buy a new monitor?

    Is using the VGA input definately not going to work either?

  5. #5
    BreakBeat Technician gtech's Avatar
    Join Date
    Apr 2007
    Location
    Anor Londo
    Posts
    1,387
    Thanks
    80
    Thanked
    76 times in 60 posts

    Re: Playstation 3 Cables.....

    This could be a very good reason to buy a new monitor ..OR..there is this option that you might want to look into.

    Amazon.co.uk: HDfury 1080P HDMI to VGA Converter Transcoder: Electronics & Photo

    Review: HDfury DVI/HDMI to RGB Converter - DCEmu Forums:: The Homebrew & Gaming Network :: PSP Dreamcast Nintendo DS Wii GP2X Xbox 360 GBA Gamecube PS2 Apple iPhone Forums

    Overview : The HDfury is a revolutionary product that allows you to use the full resolution (up to 1080p) of any DVI/HDMI device on a CRT projector, PC monitor, older HDTV/Plasma TV, or any other device without a DVI/HDMI input! If you own a high quality projector/monitor/TV that does not have a DVI/HDMI connector you need this device! Why buy a new expensive display device when your existing one can already support high definition?

    HDfury module will transform any "technically able" ANALOG display into a DIGITAL display performing a perfect visual HD & Full HD fury @ 720p/1080p from any HDMI/HDCP sources such as HD-DVD/Blu-Ray players, PS3, X360 Elite, Satellite/Cable HDTV set-top boxes, HTPCs with HDMI graphic cards, to name a few! Simply plug the HDfury into your projector, your DVI/HDMI device into the HDfury, and watch! Installation takes seconds.

    The HDfury delivers a razor sharp picture with absolutely NO video noise. The picture quality improvement as compared to RGBHV analog video is immediately obvious, providing an amazingly clear and detailed picture!

    The HDfury is 100% HDCP compliant. It is not an 'HDCP stripper'. The HDCP copy protected digital signal is first decrypted and then the digital RGB 4:4:4 signal is converted to an analog signal.
    So i dont know any1 who has used one yet but it might be worth looking at.
    Last edited by gtech; 25-05-2008 at 09:38 PM.

  6. #6
    Comfortably Numb directhex's Avatar
    Join Date
    Jul 2003
    Location
    /dev/urandom
    Posts
    17,074
    Thanks
    228
    Thanked
    1,027 times in 678 posts
    • directhex's system
      • Motherboard:
      • Asus ROG Strix B550-I Gaming
      • CPU:
      • Ryzen 5900x
      • Memory:
      • 64GB G.Skill Trident Z RGB
      • Storage:
      • 2TB Seagate Firecuda 520
      • Graphics card(s):
      • EVGA GeForce RTX 3080 XC3 Ultra
      • PSU:
      • EVGA SuperNOVA 850W G3
      • Case:
      • NZXT H210i
      • Operating System:
      • Ubuntu 20.04, Windows 10
      • Monitor(s):
      • LG 34GN850
      • Internet:
      • FIOS

    Re: Playstation 3 Cables.....

    there's no official way to drive VGA from a PS3 (despite the rather rare official cable for the ps2)

    but an upscaler box as linked by gtech might do the job, with a hit on quality (some vga boxes are terrible, some are not, usually more money makes for better images)

  7. #7
    Chillie in here j.o.s.h.1408's Avatar
    Join Date
    Dec 2005
    Location
    a place called home
    Posts
    8,543
    Thanks
    757
    Thanked
    256 times in 193 posts
    • j.o.s.h.1408's system
      • Motherboard:
      • ASUS P6T Delux
      • CPU:
      • Intel core i7 920 @ 3ghz
      • Memory:
      • 3GB DDR RAM
      • Storage:
      • 1TB Samsung F1, 500GB Seagate baracuda + 320gb Seagate PATA +150GB WD PATA
      • Graphics card(s):
      • EVGA 480GTX SC edition
      • PSU:
      • Seasonic M12 600W Module PSU FTW
      • Case:
      • Lian Li PC-A7010B (the rolls royce of pc cases)
      • Operating System:
      • vista ultimate edition and windows xp
      • Monitor(s):
      • 22inch 2005FPW dell monitor
      • Internet:
      • 24mb BE There Broadband

    Re: Playstation 3 Cables.....

    i have the same monitor has you and was way pissed off that DVI to hdmi diddntn work(had to take back the cable as i found out the hard way).

    i then got one of these instead which is far cheaper then that hd fury.

    Amazon.co.uk: 1080P Component to VGA Box (YPbPR to RGBHV) Converter Transcoder: Electronics & Photo

    dos the job realy well for my none hd ready tv that onlu has a vga connection but bewhere, on the dell monitor it looks bad. the colour contrast is too high

  8. #8
    Comfortably Numb directhex's Avatar
    Join Date
    Jul 2003
    Location
    /dev/urandom
    Posts
    17,074
    Thanks
    228
    Thanked
    1,027 times in 678 posts
    • directhex's system
      • Motherboard:
      • Asus ROG Strix B550-I Gaming
      • CPU:
      • Ryzen 5900x
      • Memory:
      • 64GB G.Skill Trident Z RGB
      • Storage:
      • 2TB Seagate Firecuda 520
      • Graphics card(s):
      • EVGA GeForce RTX 3080 XC3 Ultra
      • PSU:
      • EVGA SuperNOVA 850W G3
      • Case:
      • NZXT H210i
      • Operating System:
      • Ubuntu 20.04, Windows 10
      • Monitor(s):
      • LG 34GN850
      • Internet:
      • FIOS

    Re: Playstation 3 Cables.....

    contrast issues and overbrightness are common symptoms of cheaper VGA boxes

  9. #9
    Senior Member Blackmage's Avatar
    Join Date
    Sep 2005
    Location
    London
    Posts
    1,934
    Thanks
    202
    Thanked
    65 times in 45 posts
    • Blackmage's system
      • Motherboard:
      • MSI P67-GD65
      • CPU:
      • Intel Core I7 2600k
      • Memory:
      • 8 Gb Hynix DDR3 1333
      • Storage:
      • Crucial m4 120Gb, 2TB Samsung F4
      • Graphics card(s):
      • ATI HD5830
      • PSU:
      • 700w Coolermaster Gold Plus
      • Case:
      • Xclio/Aplus Windtunnel
      • Operating System:
      • Windows 7 Professional
      • Monitor(s):
      • Viewsonic VX2239WM 22" LCD Monitor
      • Internet:
      • Virgin Broadband 10mbit

    Re: Playstation 3 Cables.....

    Sony did mess up, with thier lack of analog video support

  10. #10
    Chillie in here j.o.s.h.1408's Avatar
    Join Date
    Dec 2005
    Location
    a place called home
    Posts
    8,543
    Thanks
    757
    Thanked
    256 times in 193 posts
    • j.o.s.h.1408's system
      • Motherboard:
      • ASUS P6T Delux
      • CPU:
      • Intel core i7 920 @ 3ghz
      • Memory:
      • 3GB DDR RAM
      • Storage:
      • 1TB Samsung F1, 500GB Seagate baracuda + 320gb Seagate PATA +150GB WD PATA
      • Graphics card(s):
      • EVGA 480GTX SC edition
      • PSU:
      • Seasonic M12 600W Module PSU FTW
      • Case:
      • Lian Li PC-A7010B (the rolls royce of pc cases)
      • Operating System:
      • vista ultimate edition and windows xp
      • Monitor(s):
      • 22inch 2005FPW dell monitor
      • Internet:
      • 24mb BE There Broadband

    Re: Playstation 3 Cables.....

    Quote Originally Posted by directhex View Post
    contrast issues and overbrightness are common symptoms of cheaper VGA boxes
    yes they definetly are but for that price of a hd fury plus the cable you might as well buy a 22 inch screen with hdcp in it for an extra 50-60 quid Computer hardware and software at amazing prices, available online from Scan Computers UK

    i was looking to buy that HD fury box but my wallet at the time diddnt allow me and i badly needed somthing to play it on hd mode has standard def looks absolutely shockingly crap

  11. #11
    Master Of The Universe CaseyV9's Avatar
    Join Date
    Jan 2008
    Posts
    1,018
    Thanks
    63
    Thanked
    28 times in 23 posts

    Re: Playstation 3 Cables.....

    Another thing to watch out for is which DVI connections you have.

    My Old PC monitor has a DVI-I connector. This is anolouge and digital.

    HDMI and DVI-D are pure digital. You cannot connect DVI - I to a DVI-D conector. Or VGA to DVI-D.

    I've seen some Samsung Monitors in PC World. Quite nice.
    They are HDCP compatable and have a VGA and DVI-D connectors on the back.
    Since DVI-D and HDMI are both purely didgital you can connect them up via a cheap adapter.

  12. #12
    Chillie in here j.o.s.h.1408's Avatar
    Join Date
    Dec 2005
    Location
    a place called home
    Posts
    8,543
    Thanks
    757
    Thanked
    256 times in 193 posts
    • j.o.s.h.1408's system
      • Motherboard:
      • ASUS P6T Delux
      • CPU:
      • Intel core i7 920 @ 3ghz
      • Memory:
      • 3GB DDR RAM
      • Storage:
      • 1TB Samsung F1, 500GB Seagate baracuda + 320gb Seagate PATA +150GB WD PATA
      • Graphics card(s):
      • EVGA 480GTX SC edition
      • PSU:
      • Seasonic M12 600W Module PSU FTW
      • Case:
      • Lian Li PC-A7010B (the rolls royce of pc cases)
      • Operating System:
      • vista ultimate edition and windows xp
      • Monitor(s):
      • 22inch 2005FPW dell monitor
      • Internet:
      • 24mb BE There Broadband

    Re: Playstation 3 Cables.....


  13. #13
    BreakBeat Technician gtech's Avatar
    Join Date
    Apr 2007
    Location
    Anor Londo
    Posts
    1,387
    Thanks
    80
    Thanked
    76 times in 60 posts

    Re: Playstation 3 Cables.....

    Quote Originally Posted by j.o.s.h.1408 View Post

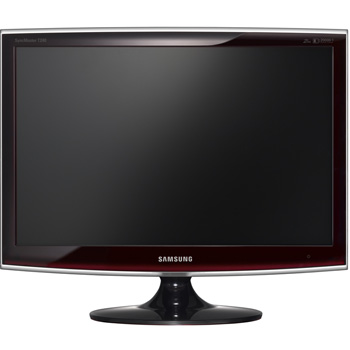

    this monitor looks gorgeous


    That monitors a beaut!

    I love samsung's this is my latest 50" and i love it



    my lovely sammy

  14. #14
    Chillie in here j.o.s.h.1408's Avatar
    Join Date
    Dec 2005
    Location
    a place called home
    Posts
    8,543
    Thanks
    757
    Thanked
    256 times in 193 posts
    • j.o.s.h.1408's system
      • Motherboard:
      • ASUS P6T Delux
      • CPU:
      • Intel core i7 920 @ 3ghz
      • Memory:
      • 3GB DDR RAM
      • Storage:
      • 1TB Samsung F1, 500GB Seagate baracuda + 320gb Seagate PATA +150GB WD PATA
      • Graphics card(s):
      • EVGA 480GTX SC edition
      • PSU:
      • Seasonic M12 600W Module PSU FTW
      • Case:
      • Lian Li PC-A7010B (the rolls royce of pc cases)
      • Operating System:
      • vista ultimate edition and windows xp
      • Monitor(s):
      • 22inch 2005FPW dell monitor
      • Internet:
      • 24mb BE There Broadband

    Re: Playstation 3 Cables.....

    WOW!!!!!!!!!!!!!! i think i just wet my pants! :O

  15. #15
    Master Of The Universe CaseyV9's Avatar
    Join Date
    Jan 2008
    Posts
    1,018
    Thanks
    63
    Thanked
    28 times in 23 posts

    Re: Playstation 3 Cables.....

    Quote Originally Posted by j.o.s.h.1408 View Post
    Ooohh, Sweet.
    That's 1080p sorted.

    Curse my impulsive purchases. Last week, If I had held off and save an extra £150, That would be mine. Anyone seen that working?

  16. #16
    Master Of The Universe CaseyV9's Avatar
    Join Date
    Jan 2008
    Posts
    1,018
    Thanks
    63
    Thanked
    28 times in 23 posts

    Re: Playstation 3 Cables.....

    I have heard people saying Dell monitors are pretty good.

    This ticks similiar boxes for hooking a PS3 to:



    Also at Scan:

    Computer hardware and software at amazing prices, available online from Scan Computers UK

    get a cheap HDMI > DVI-D adapter and you,ve got yourself 1080p.
