Nvidia announces Tesla P100 GPU with Pascal architecture

[lumireleon]

is AMD working on a product similar to NvLink?

[DanceswithUnix]

The marketing slides show the GPU has PCIe interface - NVlink is a server interconnect, not a desktop feature. PCIe should be more than enough for a gaming workload, but even if for some reason Pascal was massively more bus-hungry than any previous card ever and PCI was suddenly not enough, tough, because you're getting a PCIe connection to the Intel/AMD CPU.


But I agree with others, it looks very much like a HPC-focussed card rather than a gaming GPU - the size alone is likely to make it prohibitively expensive for quite some time. And then there are things like the NVlink interfaces which take an unknown size on the silicon, but if the non-gaming-applicable stuff isn't too large I guess they could just harvest dies where it's broken to sell as gaming cards.

Edit: Just having read more of the thread, yeah a lot seems to be off with the announcement. Not least the absurd 'first' claims about CoWoS, etc. Also, what happened to that 10x performance claim? I mean we knew it was always going to be in some really specific mixed-precision workloads but I've not seen it mentioned again?

Also, have we seen any evidence of working silicon yet? I only recall seeing renders? Though at least they're now actually showing HBM rather than what looked like HMC on the older ones! xD

Yeah it's a compute card, bound to end up as a Titan though isn't it.

I think the 10x performance claim was for neural network training, where the 16 bit FP support should make it fly.

Even when demos are given behind closed doors, people can't report on specifics but they say it happened so I guess no working silicon has been demoed yet.

[DanceswithUnix]

is AMD working on a product similar to NvLink?

High speed interconnect is nothing new or special for AMD, and the headline speeds HT is faster than NVlink. Having said that, I'm sure I read somewhere that HyperTransport was a bit dated and AMD were looking to do better, but I can't find the reference.

Hypertransport 3.1 on a single link usually can do 12.8GB/sec per direction, unless you go for the full width of 32 bits which allows 25.6GB/sec in each direction.

As per usual I haven't seen any proper specs on NvLink, but Nvidia claim 20GB/sec on a link. That is one direction, so you might see the number doubled for the full cross sectional bandwidth. Nvidia talk about running 4 links together for an aggregate 80GB/sec. Really, the slides look rather like a "look how we can connect these Athlons together in a grid" slides from 15 years ago, just with GPUs and more up to date speeds.

Anyone seen how many lanes NvLink uses? As the more modern design I presume it is 16 per direction, but facts seem thin on the ground.

Note also that this is kind of prototype first outing for Nvlink, and PCIe 4 at 32GB/sec is not far behind with release next year.

[Corky34]

The marketing slides show the GPU has PCIe interface - NVlink is a server interconnect, not a desktop feature. PCIe should be more than enough for a gaming workload, but even if for some reason Pascal was massively more bus-hungry than any previous card ever and PCI was suddenly not enough, tough, because you're getting a PCIe connection to the Intel/AMD CPU.

I get the feeling though that the diagram you/they showed is like some of their other claims, that it will eventually come with a PCIe connection (that it's capable of using PCIe) but the first cards are only going to come with NVLink, i get the feeling that they're fabricating (and initially selling) large silicon and binning ones that don't meet make the grade for a lesser (lower power draw) HPC card that will use PCIe.

OTOH, the announcement just keeps raising questions. Quite apart from the DP heavy design (which might not play out well in the gaming market), I want to know what they're doing with the HBM2 to only get 720GB/s out of it (and quite why they think that's 3x Maxwell when the 980 Ti and Titan X pull 336GB/s)? AMD's 4 stack HBM1 implementation returned 512GB/s theoretical bandwidth. The more I hear about Pascal the less impressive it appears to be....

What their doing with HBM2 is using it on a HPC class card, comparing HPC cards with a gaming cards is like comparing apples with oranges.

The Telsa P100’s bandwidth figure is below that of the JEDEC HBM2 spec that SK Hynix & Samsung both adhere to. Which dictates that every 4-HI HBM2 stack should operate at a 2Ghz clock speed to deliver 256GB/s of bandwidth for a total of 1TB/s for four stacks. The HBM2 modules on the Tesla P100 actually operate well below the spec at only 1.4Ghz.

JEDEC doesn't (afaik) specify a operating speed or throughput, they just say *up to*, i could be wrong but i thought JEDEC specifications were more about setting standards for things like voltage, prefetch, and things that are more to do with *how* RAM works.

[DanceswithUnix]

I get the feeling though that the diagram you/they showed is like some of their other claims, that it will eventually come with a PCIe connection (that it's capable of using PCIe) but the first cards are only going to come with NVLink, i get the feeling that they're fabricating (and initially selling) large silicon and binning ones that don't meet make the grade for a lesser (lower power draw) HPC card that will use PCIe.

The card must have PCIe support. The NvLink will only work if you are plugging the cards into a supporting IBM Power CPU based platform, and much though I like the IBM Power based machines there will be workloads that are less dependant on the host CPU where a bottom of the range Xeon running a couple of cards over PCIe makes more sense.

Edit to add: Is it just me that sees "P100" and think "Well it was better than the Pentium P60, but the P100 was still rubbish"

[Corky34]

I'm not saying it's never going to support PCIe, I'm saying that presently the P100 card itself doesn't, at least that what AnandTech‎ seems to indicate, my guess is their binning Pascal and the high end goes into the P100 and lesser ones will probably go into a lower power, PCIe card.

EDIT: In the AnandTech article they have a picture of the NVLink hybrid cube mesh and *that* connects to the CPU via PCIe, but the cards themselves don't have a PCIe connection.

[scaryjim]

I'm not saying it's never going to support PCIe, I'm saying that presently the P100 card itself doesn't, at least that what AnandTech‎ seems to indicate, my guess is their binning Pascal and the high end goes into the P100 and lesser ones will probably go into a lower power, PCIe card.

No, that Anandtech article shows all 8 P100s connected to the Xeon CPUs by PCIe links going through PCIe switches:


The black lines are clearly labelled PCIe. If they didn't have PCIe they couldn't communicate with the CPU/rest of system so wouldn't be able to do anything.

[Corky34]

No, that Anandtech article shows all 8 P100s connected to the Xeon CPUs by PCIe links going through PCIe switches:

The Anandtech article says and shows that it's being done via the NVLink hybrid cube mesh, the P100 card doesn't have a PCIe connector..

[kalniel]

Just depends what you call a card really. The diagrams show that you can have two P100 chips per PCI-E connection, much the same as Radeon Pro Duo and previous Tesla cards. How you lay out those interface/chips is quite flexible it seems, but it's still primarily communicating with the rest of the system via PCI-E.

[DanceswithUnix]

The Anandtech article says and shows that it's being done via the NVLink hybrid cube mesh, the P100 card doesn't have a PCIe connector..

I'm sure the option is available to use either, depending on the target system. Most systems will want to use PCIe, but those Dept of Energy supercomputers will use an awful lot of GPUs so they may well use nothing but NVlink. Those probably aren't fully designed yet, so will also want to keep some flexibility.

I expect it would have a PCIe connector somewhere, even if it doesn't look like a conventional one.

[Corky34]

The card would be what the chip is mounted on, it's the printed circuit board that can be inserted into an electrical connector, the P100 does *not* come with a electrical connector for PCIe, that's not to say it has no PCIe protocols, circuits, or PCIe related hardware in the chip or on the P100's printed circuit board, in fact going on the Anandtech article the two electrical connectors on the backside of the card are split, half uses the PCIe protocol and half NVLink.

At a guess Nvidia will release a P50 later in the year made from the Pascal silicon that didn't make the cut, that's when we'll see a HPC card that uses a PCIe electrical connector.

[kalniel]

The card would be what the chip is mounted on, it's the printed circuit board that can be inserted into an electrical connector, the P100 does *not* come with a electrical connector for PCIe, that's not to say it has no PCIe protocols, circuits, or PCIe related hardware in the chip or on the P100's printed circuit board, in fact going on the Anandtech article the two electrical connectors on the backside of the card are split, half uses the PCIe protocol and half NVLink.

So it does have a PCI-E electrical connection, just on the back?

[scaryjim]

... the P100 does *not* come with a electrical connector for PCIe ...

... going on the Anandtech article the two electrical connectors on the backside of the card are split, half uses the PCIe protocol ...

So it doesn't have an electrical connector for PCIe, but half of it's electrical connector is for PCIe?

It doesn't use a conventional PCIe edge/slot connection that conforms with one of the published PCIe standards for connectors. It *does* have an electrical connector for PCIe. It's a non-standard, proprietary connection, but it has one.

[DanceswithUnix]

The card would be what the chip is mounted on, it's the printed circuit board that can be inserted into an electrical connector, the P100 does *not* come with a electrical connector for PCIe, that's not to say it has no PCIe protocols, circuits, or PCIe related hardware in the chip or on the P100's printed circuit board, in fact going on the Anandtech article the two electrical connectors on the backside of the card are split, half uses the PCIe protocol and half NVLink.

At a guess Nvidia will release a P50 later in the year made from the Pascal silicon that didn't make the cut, that's when we'll see a HPC card that uses a PCIe electrical connector.

You can't plug it into a standard motherboard PCIe socket, but that's fine and no-one is going to care about that. That card you pictured understands PCIe as a protocol, the Anandtech article states "Though the GP100 GPU at the heart of the P100 supports traditional PCI Express".

Edit to add: I should learn to type faster

[Corky34]

So it does have a PCI-E electrical connection, just on the back?

So it doesn't have an electrical connector for PCIe, but half of it's electrical connector is for PCIe?

It doesn't use a conventional PCIe edge/slot connection that conforms with one of the published PCIe standards for connectors. It *does* have an electrical connector for PCIe. It's a non-standard, proprietary connection, but it has one.

No it doesn't have a PCIe electrical connection, there's no PCIe electrical interface, the electrical connections/interfaces are both NVLink as shown in the backside shot of the card...

It's totally possible that one of the two NVLink connectors, theoretically, could be rewired to standard PCIe connector as going on the Anandtech article half of those two NVLink connectors are using the PCIe protocol and the other half uses the NVLink protocol, but both use the NVLink *connector*, that's why i said i expect them to come out with something like a P50, a cut down version of the P100, that will drop the NVLink connectors and rewire one of them to a PCIe connector.

The electrical connector/interface is the edge/slot connector, the electrical connector/interface is an electro-mechanical device for joining electrical circuits as an interface using a mechanical assembly.

[DanceswithUnix]

Those WiFi little cards that you get in laptops are PCIe. The modern SSDs that come on a small card and don't look anything like a hard disk, those can be PCIe. Heck, even a USB C connector can carry PCIe. Some SATA ports and network ports on motherboards use PCIe without ever even going over a connector.

Those two big connectors you show in that image, one of them has PCIe signals on it.

Edit to add: In fact, one of those connectors is supposed to be power and PCIe, the other has four NvLink connections on it.

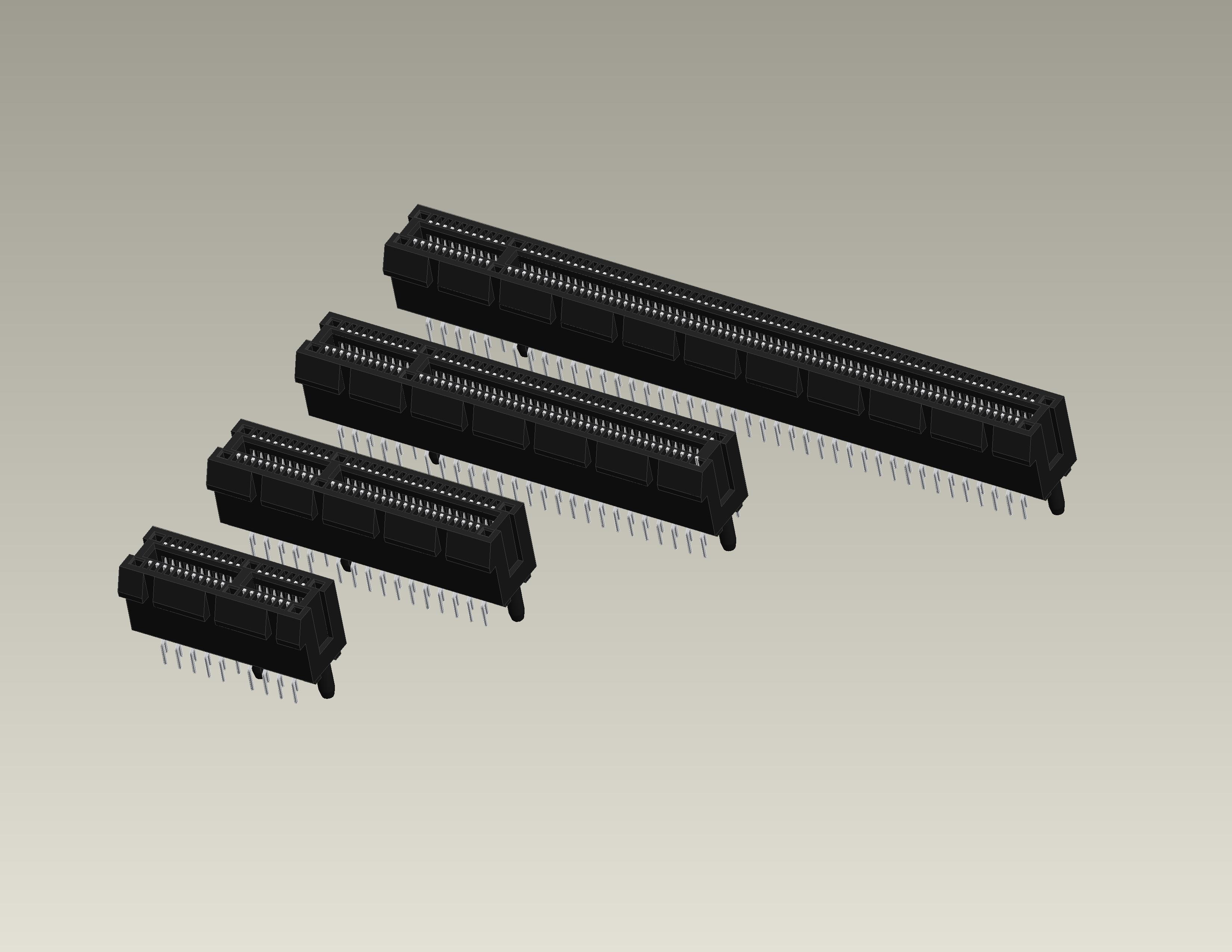

I think you are confusing PCIe which is an electrical signalling and logical configuration standard with these edge connectors which are just an option:



We aren't talking about edge connectors.
