Thread: Please Help Before I Take A Hammer To My New Rig!

  1. #1
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post

    Please Help Before I Take A Hammer To My New Rig!

    Hey all,

    I've got a serious (I think) but unknown problem with a new PC I have just put together. I built it literally this week and pretty much all of it is brand new, it is as follows:

    Gigabyte GA-965P-DQ6 mobo
    Intel Q6600 cpu
    Gigabyte 3d Rocket Pro heatsink/fan
    2 Gb Kingston Hyper-x 6400 Ram
    XpertVision GeForce 8500GT (sonic edition) gpu
    Maxtor 80Gb SATA2 hdd (no need for lots of local storage as have NAS)
    Lite-on 16x DVD combo
    Thermaltake Shark case
    Generic (and very cheap) 305w psu

    The only things not out-of-the-box brand new are the 3d Rocket pro, the DVD combo and the case. When I put it together for the very first time, it powered on straight away, detected all the drivers and let me into the bios without any problems at all, which I took to be a good sign.

    Due to an application on the mobo's driver CD used to make the SATA driver floppy that wasn't working, it took a little while to get windows XP pro installed, but after a few days it was installed, fully windows updated and running nicely.

    However, it's not even a week old and already I'm getting this really frustrating problem. Sometimes when I switch the PC on, it begins to boot but then hangs on the memory test part and the screen just displays 'Memory T'. It will then stay on this indefinately.

    The first time it happened, I fixed it by taking out one of the sticks of ram and booting up with just one, then shutting down and putting the second stick in. The second time it happened, I had to remove both sticks, try to boot (obviously it failed completely to do anything and shut down almost straight away), then replace both sticks and it then booted perfectly.

    What gives? I don't want to have to take my case out and mess about with the ram for ten minutes every time I want to switch it on. I have never come across this problem before on any other machine and clearly all of the hardware it compatible and works fine or it wouldn't work at all.

    Has anyone ever seen this before? The new system looks ok right, no glaring problems or anything?
    Could it be the really cheap unbranded power supply that is the problem? Or could it be that I need to up the voltage to the ram in the bios?

    Some advice or assistance would sure be appreciated!

  2. #2
    The King of Vague Steve B's Avatar
    Join Date
    Oct 2005
    Location
    Glasgow
    Posts
    5,051
    Thanks
    116
    Thanked
    67 times in 63 posts
    1. Whats the RAM voltage?
    2. Whats the BIOS revision?
    3. Is it the latest BIOS?
    4. Try running memtest to see if its the RAM thats faulty

  3. Received thanks from:

    wellmad (12-08-2007)

  4. #3
    Senior Member
    Join Date
    Nov 2005
    Posts
    206
    Thanks
    0
    Thanked
    1 time in 1 post
    • vaio's system
      • Motherboard:
      • Gigabyte Ds3 rev1.
      • CPU:
      • Allendale E6300 468 x7
      • Memory:
      • 2 x 512 Guil Ultra PC2 6400 468mhz @ 2.1v
      • Storage:
      • 120 GB Maxtor PATA/Ubuntu-Vista dual boot.
      • Graphics card(s):
      • Sapphire Radeon 1600 Pro.
      • PSU:
      • Corsair HX520.
      • Case:
      • Enermax Chakra.
      • Monitor(s):
      • ATMT 19" tft. (1280 x 1024)
    Surprised it ever booted at all with that psu

    Increasing the ram voltage is worth a try.........what voltage is the ram specced for?

    As Steve said, give Memtest a try.
    Member Of Crunchers Inc multi project Distributed Computing team-New members most welcome *

  5. #4
    DILLIGAF GoNz0's Avatar
    Join Date
    Jun 2006
    Location
    Derby
    Posts
    10,866
    Thanks
    632
    Thanked
    1,190 times in 943 posts
    • GoNz0's system
      • Motherboard:
      • Asus Rampage V Extreme
      • CPU:
      • i7 something X99 based
      • Memory:
      • 16gb GSkill
      • Storage:
      • 4 SSD's + WD Red
      • Graphics card(s):
      • GTX980 Strix WC
      • PSU:
      • Enermax Galaxy 1250 (9 years and counting)
      • Case:
      • Corsair 900D
      • Operating System:
      • win10 64bit
      • Monitor(s):
      • Dell 24"
      • Internet:
      • 220mb Cable
    yeh never let ram set itself up, any high end sticks normally need set voltage and timings to work right.

  6. Received thanks from:

    wellmad (12-08-2007)

  7. #5
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    Hi, thanks for the responses guys,

    @Steve B: I don't know what the voltage for the ram is by default (i haven't adjusted it), the bios just says 'AUTO' for it. The bios revision is F5. F11 is the most recent. I just tried to update the bios using @bios but the computer froze. Total pant-fill moment, but luckily it froze during the backup of the rom, not the flash.

    @vaio: Yeah, I just bought a 500w modular antec, should come next week. I don't know what the voltage is specced at for the ram

    @GoNz0: I'm not sure how to set the timings on ram, never had to do it before. Apparently the mobo requires the ram to be JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 but this means little to me at the moment

    I guess I need to update the bios, then maybe someone could asisst with setting the timings, but should I wait for my new psu to arrive first and just battle with the machine until then?

  8. #6
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    I just checked the reciept for the ram and this is what it says:

    'Kingston 2GB Kit (2x1gb) DDR2 800MHz/pc2-6400 Hyperx Memory Unbuffered Cl4(4-4-4-12) Non-ECC 2.0v'

    So it seems that the ram is not compatible with the mobo as the ram should be 4-4-4 2.0v but the mobo requires 5-5-5 1.8v. Is this correct? can i just set the ram the way the mobo wants it or is that what has been done automatcially and that is causing the problem?

  9. #7
    The King of Vague Steve B's Avatar
    Join Date
    Oct 2005
    Location
    Glasgow
    Posts
    5,051
    Thanks
    116
    Thanked
    67 times in 63 posts
    you'll need to modify the RAM voltage as set by the bios. ill check my DS4 which should be very similar to see what option its under...

  10. #8
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    cool, thanks...

  11. #9
    The King of Vague Steve B's Avatar
    Join Date
    Oct 2005
    Location
    Glasgow
    Posts
    5,051
    Thanks
    116
    Thanked
    67 times in 63 posts

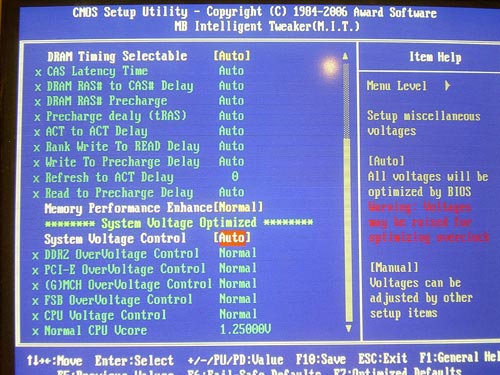

    im thinking thats the page your looking for:

    change to manual, and modify the DRAM voltage to 2.0 or 2.1V
    its one of the settings in the intelligent tweaker anyway

  12. Received thanks from:

    wellmad (12-08-2007)

  13. #10
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    yeah, I have a bios screen just like that. The overvoltage section for the ram allows me to up the voltage by a certain amount, but I don't know what it is currently set to in order to work out how much to up the voltage... is there an app that can check this for me? Do I just assume that it is set to 1.8 by mobo and therefore increase it by 0.2v?

  14. #11
    Flat cap, Whippets, Cave. Clunk's Avatar
    Join Date
    Jan 2006
    Posts
    11,056
    Thanks
    360
    Thanked
    725 times in 459 posts
    Seriously, if you value your components, dont use that PSU. If that is indeed the cause of your problems and it does decide to blow, it could potentially take the rest of your stuff with it.

    Not worth it. Wait till your Antec arrives.
    Quote Originally Posted by Blitzen View Post
    stupid betond belief.
    You owe it to yourself to click here really.

  15. Received thanks from:

    wellmad (12-08-2007)

  16. #12
    Senior Member
    Join Date
    Dec 2006
    Posts
    301
    Thanks
    6
    Thanked
    13 times in 12 posts
    • Fornowagain's system
      • Motherboard:
      • GA58-Extreme
      • CPU:
      • Core i7 940 @ 4Ghz - HTx8!!!!
      • Memory:
      • 6Gb Corsair @ 1800MHz
      • Storage:
      • Raptors
      • Graphics card(s):
      • Water cooled 4870X2
      • PSU:
      • PCP&C 750W
      • Case:
      • Mozart
      • Operating System:
      • W 7
      • Monitor(s):
      • 24"
    As it says above you should be able to change the voltage control to manual and set it to 2.0v. You can do the same for the timings as well.

  17. #13
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    thanks for the tip clunk, i'll wait till it arrives before messing with these settings....but i'll be back with more questions when it arrives! Just downloading a trial of Everest which will hopefully tell me my current ram voltage...

  18. #14
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    @Fornowagain: nope, it just lets me increase by small increments, not set it at a particular value. Also, I can't see anything that will let me set timings, not sure what to look for

  19. #15
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    ok, according to everest my ram is currently at 1.92v with 5-5-5-16 timing. Will change the voltage when new psu arrives next week. I really don't know what the timings mean, what they refer to, how to change them or what to change them to...

  20. #16
    Member
    Join Date
    Sep 2004
    Posts
    143
    Thanks
    16
    Thanked
    1 time in 1 post
    ok, I put my new Antec in, powered it up and it booted first time without hanging on 'MEMORY T' like it was before so that's good =)

    I set my RAM to 2.1 as advised also.

    Now, I'd like to do some overclocking, I haven't done much before as on my last board all I had to do was max the voltage on everything (there were just three settings and I can't remember what they were)

    Is it just a case of increasing the voltage on everything in small increments untill it becomes unstable so that I know the max limits? Please advise
