Thread: Fan control question

  1. #1
    Registered User
    Join Date
    Jul 2008
    Location
    London
    Posts
    346
    Thanks
    17
    Thanked
    20 times in 19 posts

    Fan control question

    I have 2 questions that hopefully someone can help with. I'm currently looking to replace a couple of case fans with quieter models and would also like to get a fan controller to manually adjust the rotation speeds.

    Firstly, regarding the fan controller:

    http://www.scan.co.uk/Product.aspx?WebProductId=838521

    Asides from the price I quite like the look of this, the temperature sensors would be very useful. The problem is can't find any measurements of the height of the dials on the front (i.e. how far from the front face plate they extend). Does anyone know these? It's quite important for me since there isn't a huge amount of clearance between my case door and the front of the 5.25" bays.

    Secondly, this is probably a very silly question but what is the difference between regular and PWM fans?

    I'm considering either these:

    http://www.specialtech.co.uk/spshop/...cat=885&page=1

    or these:

    http://www.specialtech.co.uk/spshop/...cat=885&page=1

    Which type would be best for use with a fan controller such as the one linked to above?

  2. #2
    Senior Member
    Join Date
    May 2008
    Location
    Bath Uni
    Posts
    1,140
    Thanks
    169
    Thanked
    71 times in 66 posts
    • Will404's system
      • Motherboard:
      • ASUS P5Q PRO
      • CPU:
      • Core2quad Q6600 @2.85GHz
      • Memory:
      • 4GB Corsoar Twin X XMS2 DDR2-PC2 6400 @ 900MHz, 5-5-5-18
      • Storage:
      • WD 320GB, Segate 320GB (Raid 0), 2* WD 1TB storage
      • Graphics card(s):
      • ATI Sapphire HD 4850
      • PSU:
      • Corsoar HX 520
      • Case:
      • Antec 900
      • Operating System:
      • Windows 7 Pro x64
      • Monitor(s):
      • ASUS MW221u 22"

    Re: Fan control question

    I think that if anywhere the solution to your first question can be found here

    As for the second question, I think it means that they have built in speed regulation (through the fourth pin) like on a CPU power supply.

    Quote Originally Posted by wikipedia View Post
    PWM is also used in efficient voltage regulators. By switching voltage to the load with the appropriate duty cycle, the output will approximate a voltage at the desired level. The switching noise is usually filtered with an inductor and a capacitor.

    One method measures the output voltage. When it is lower than the desired voltage, it turns on the switch. When the output voltage is above the desired voltage, it turns off the switch.

    Variable-speed fan controllers for computers usually use PWM, as it is far more efficient when compared to a potentiometer.
    I think that the first will work better, as they have either molex (old IDE HDD ect power) or 3-pinpower. I think that the fan controller has 3-pin fan connectors going to the fans, and Floppy power comming in. It seems to come with some PWM 4-pin adaptors for fans of the second type, but I am not sure how many.

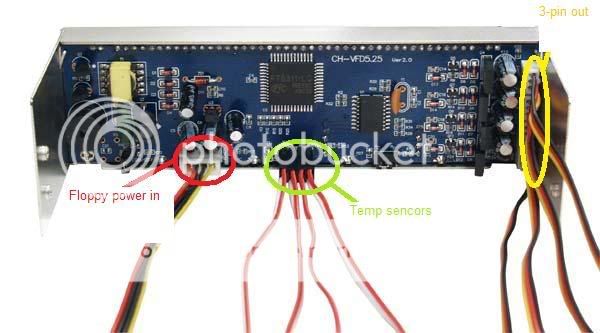

    here is a nice picture that I got of there website, and edited
    Last edited by Will404; 26-07-2008 at 11:05 PM. Reason: Made a nice piccy:D

  3. #3
    Registered User
    Join Date
    Jul 2008
    Location
    London
    Posts
    346
    Thanks
    17
    Thanked
    20 times in 19 posts

    Re: Fan control question

    Ah right, so basically the PWM fans would be a bit pointless since this controller uses 3 pin connectors on the pcb. Thanks for pointing that out. I'll get the 3 pin ones and save a couple of quid!

    Incidentally the manafacturers website shows the whole products dimensions and I really wanted to know how far the dials stick out from the front bezel which it doesn't say. If anyone else wants to know I found a review that says it's about 12mm.

    http://tech-reviews.co.uk/reviews/sc...an-controller/

  4. #4
    Senior Member Brewster0101's Avatar
    Join Date
    Dec 2007
    Location
    UK
    Posts
    2,614
    Thanks
    45
    Thanked
    54 times in 44 posts
    • Brewster0101's system
      • Motherboard:
      • Asus m5a99x evo
      • CPU:
      • AMD FX 8350
      • Memory:
      • 8GB (2x4) Corsair Vengence DDR3 1600mghz
      • Storage:
      • Western Green 3TB + Samsung 850Evo 512MB SSD, + 2TB NAS
      • Graphics card(s):
      • MSI 280X
      • PSU:
      • Corsair AXi760
      • Case:
      • Corsair 650D
      • Operating System:
      • Windows 10 Pro
      • Monitor(s):
      • LG 27" 27EA63 IPS LED
      • Internet:
      • 120Mb Bt

    Re: Fan control question

    The scythe Kaze master is brilliant, it can reduce the voltage down to almost 0 making it the most flexible fan controlled. I would go for some scythe Jyuni

    http://www.chilledpc.co.uk/shop/prod...roducts_id=468
