    Inside a ZooStorm

    Just a quick thread, we got a zoostorm pc here at work for evaluation, just as a general desktop.

    Here's the model
    http://www.zoostorm.com/Products/389...os-sff-pc.aspx
    First thing I did was take a screwdriver to it (there is no warranty sticker sealing the sidepanel/cover on this model) and here's what they don't tell you, the full component specs

    Hard drive is Western digital Blue WD5000AAKX
    Motherboard is a Gigabyte GA-H81M-DS2V rev1.0
    RAM is a single stick from Crucial CT51264BA160B (yep it's 1600mhz not 1333)
    DVDr/w is a LiteOn model iHAS122-14
    PSU is a TFX form factor by PowerMan model number IP-S250FF7-2, 250w, 17.5amp over 2 rails for the 12v, 80+ rated (InWIN unit http://www.in-win.com.tw/Power/en/go...-S-Series%20FF)
    Case is the InWIN BL641 http://www.in-win.com.tw/Corporate/e...=view&id=BL641 minus the additional 80mm side fan, the cpu cooler shroud and the tool free drive mounting (there's black plastic covers where the toolless fittings should be)
    CPU is an i3-4130 (I'll confirm the full details on Friday) with a stock intel cooler.
    there is a basic usb keyboard and mouse, no clue off hand to the OEM of these.

    EDIT: I'll get some photo's next friday

  2. #2
    Senior Member Bonebreaker777's Avatar
    Join Date
    Dec 2012
    Location
    Herts, UK
    Posts
    2,004
    Thanks
    46
    Thanked
    190 times in 177 posts
    • Bonebreaker777's system
      • Motherboard:
      • MSI H97I AC
      • CPU:
      • Xeon 1225 v3 + Freezer 11 L
      • Memory:
      • 2 x 4GB 1600Mhz 1T-8-8-8-20 1.35V Crucial BallistiX Tactical VLP
      • Storage:
      • 128GB CRUCIAL MX100///XPEnology server + 3 x WD Purple 3TB
      • Graphics card(s):
      • Intel HD 4600
      • PSU:
      • be quiet! L8 300W PSU BN220
      • Case:
      • Cooler Master Elite 120
      • Operating System:
      • Windows 10 Pro 64bit
      • Monitor(s):
      • Samsung SyncMaster 226BW
      • Internet:
      • Virgin 100Mb

    Re: Inside a ZooStorm

    *CPU i3-4130

    What OS will it run? How much it coated?

  3. #3
    Nefarious Networker Dareos's Avatar
    Join Date
    Dec 2006
    Location
    Larkhall, Scotland
    Posts
    3,358
    Thanks
    449
    Thanked
    396 times in 293 posts
    • Dareos's system
      • Motherboard:
      • Gigabyte Z77 - UD3H
      • CPU:
      • Intel i5 Ivy Bridge
      • Memory:
      • 16GB Corsair Vengeance
      • Storage:
      • Crucial M4 128GB, Seagate Barracuda 2TB
      • Graphics card(s):
      • Gigabyte Geforce 670 OC Windforce x 2
      • PSU:
      • Corsair 1050 Modular
      • Case:
      • Fractal R3
      • Operating System:
      • Win 7
      • Monitor(s):
      • 27" DGM and 40" Samsung TV
      • Internet:
      • 152 Mb Virgin

    Re: Inside a ZooStorm

    Zoostorms always looked very good value for money, always made me wonder where the corners were cut, be nice to see a cost breakdown.
    We're only here for the Banter - The Luvvies - Chewin' The Fat

    Violence and Lubrication is the solution to fixing everything, if it still doesn't work, you need more lubrication.

    Quote Originally Posted by this_is_gav View Post
    How do you change the height of them?

    I've just had a quick fiddle with the knob at the front :\

  4. #4
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    9,964
    Thanks
    580
    Thanked
    1,199 times in 1,102 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Dell 21" ips something

    Re: Inside a ZooStorm

    Quote Originally Posted by Bonebreaker777 View Post
    *CPU i3-4130

    What OS will it run? How much it coated?
    Opps edit
    Well any OS you want to put on it, it is a standard h81 motherboard not some custom job, it comes with the normal gigabyte motherboard manual and driver dvd, again not a custom job.

    "coated????" did you mean cost? We got it from misco http://www.misco.co.uk/product/21580...-No-OS-1Yr-RTB £270.68 Inc VAT

    Quote Originally Posted by Dareos View Post
    Zoostorms always looked very good value for money, always made me wonder where the corners were cut, be nice to see a cost breakdown.
    Well that's part of why I posted this

    From uk.partpicker.com

    i3-4130 = amazon.co.uk £77.99
    gigabyte GA-H81M-DS2V = amazon.co.uk £40.72
    Crucial CT51264BA160B = amazon.co.uk £29.04
    Western digital Blue WD5000AAKX = aria £34.74
    InWIN BL641 = not listed on partpicker but scan does stock it with the 300w psu £54.77
    LiteOn iHAS122-14 = again not listed on partpicker but scan has it £11.98

    Total = £249.24, chuck on £8 ish for a keyboard and mouse so about £257

    quick check amazon don't have it but dabs has the same zoostorm for £264.58 http://www.dabs.com/products/zoostor...stem-96HM.html
    So around £10 more than the parts on this unit anyways.

    The corners cut is definitely the motherboard, not that it's a bad one but it is the cheapest most basic option, the thing is really dinky, smallest mATX motherboard I've seen before, it's matx in height but mini-itx in width.
    One thing to note is that this is their SFF unit, their normal mid towers are cheaper, I don't have one and I've not been able to find out the OEM on the case & psu so I cannot comment that much on it, however I think that's a cheaper option than the inwin on this SFF unit.

  5. Received thanks from:

    Dareos (26-10-2014)

  6. #5
    Senior Member Bonebreaker777's Avatar
    Join Date
    Dec 2012
    Location
    Herts, UK
    Posts
    2,004
    Thanks
    46
    Thanked
    190 times in 177 posts
    • Bonebreaker777's system
      • Motherboard:
      • MSI H97I AC
      • CPU:
      • Xeon 1225 v3 + Freezer 11 L
      • Memory:
      • 2 x 4GB 1600Mhz 1T-8-8-8-20 1.35V Crucial BallistiX Tactical VLP
      • Storage:
      • 128GB CRUCIAL MX100///XPEnology server + 3 x WD Purple 3TB
      • Graphics card(s):
      • Intel HD 4600
      • PSU:
      • be quiet! L8 300W PSU BN220
      • Case:
      • Cooler Master Elite 120
      • Operating System:
      • Windows 10 Pro 64bit
      • Monitor(s):
      • Samsung SyncMaster 226BW
      • Internet:
      • Virgin 100Mb

    Re: Inside a ZooStorm

    Quote Originally Posted by Bonebreaker777 View Post
    *CPU i3-4130

    What OS will it run? How much it coated?
    You are right.Costed.I do beg your pardon

  7. #6
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    9,964
    Thanks
    580
    Thanked
    1,199 times in 1,102 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Dell 21" ips something

    Re: Inside a ZooStorm

    I've added a cost breakdown now, it's slightly more than parts, it's their systems with OS that you'll have a harder time to beat, they probably get windows far cheaper than we can.
    At work we've got a MS licence agreement so no needs to pay for os a 2nd time.

    The interesting thing is that zoostorm sell no OS systems, one of the few that do.

  8. #7
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    9,964
    Thanks
    580
    Thanked
    1,199 times in 1,102 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Dell 21" ips something

    Re: Inside a ZooStorm

    Photo's

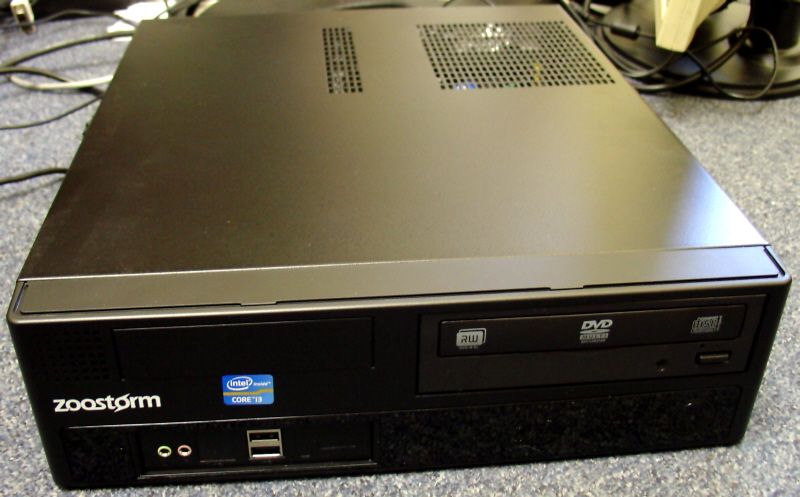

    Note only 2 usb2 front ports unlike the standard inWin BL641


    Note the lack of side fan and cpu shroud unlike the standard BL641, also the missing tool free clips.
    The two yellow leavers are to remove the drive bay section, you have to remove the front bezel first, press the leavers then it just lifts off.
