    TEC/Peltier effect CPU coolers - and why they're not very useful.

    I put this link in another old thread, but thought I would add it here for (hopefully) easier finding via search in future. We've had a few threads I can recall where people ask about peltier effect coolers aka. Thermal Effect Coolers (TEC). This review is a useful summary of the pitfalls, and shows the poor performance that is achieved: http://www.anandtech.com/show/10695/...-cooler-review

    Quote Originally Posted by http://www.anandtech.com/show/10695/the-phononic-hex-2-0-tec-cpu-cooler-review
    There are however a few problems when working with TECs:

    1. Condensation. A typical TEC can produce a temperature difference of up to 70 °C between its cold and hot side. Assuming that a heatsink is mounted to the hot side and that it is capable to maintain a near-room temperature, the cold side of an uncontrolled TEC can be significantly colder than its ambient surroundings. That will cause condensation, which will be disastrous inside a PC.

    2. Efficiency. TECs are generally inefficient, with an efficiency usually lower than 15%, which means that they consume disproportionally high amounts of electrical energy for the work they actually offer.

    3. The electrical energy losses that the TEC inserts are converted directly to thermal energy and transferred to its hot side. Therefore, the heatsink has to deal with the thermal load of the system plus the energy losses of the TEC, increasing the size and performance requirements.
    Quote Originally Posted by http://www.anandtech.com/show/10695/the-phononic-hex-2-0-tec-cpu-cooler-review/6

    The thermal performance of the HEX 2.0 is a complicated matter. The presence of the TEC allows the HEX 2.0 to provide exceptional performance when having to deal with low thermal loads, but the performance degrades as the thermal load increases. For very high thermal loads, the HEX 2.0 is equivalent or worse than an advanced air cooler, hardly justifying its price and energy consumption. That being said, while the HEX 2.0 is good for low temperatures in low power environments, it does add another 20W to the power consumption, perhaps negating the point of a low power system. It should work wonders if installed on a modern energy-efficient CPU, even with some moderate overclocking, but it cannot compare against top-tier air coolers and liquid coolers for advanced overclocking. Bluntly put, if thermal performance is your primary concern and space is not an issue, this is not a product for you.

    In summary, the Phononic HEX 2.0 is a very interesting product but it is clearly aimed at a very specific segment of the market, which is users that have serious space limitations and or cannot use liquid cooling solutions for any given reason. If large air coolers or liquid coolers can fit, it is highly unlikely that the HEX 2.0 will have any distinct advantage, let alone justify its $150 retail price.
    Peterb also dug out this technical paper which summarises some of the efficiency issues faced by Peltier coolers: http://www.asee.org/public/conferenc.../3976/download For the range of tests undertaken peak efficiency was only 2.2% for a deltaT of 68 degrees. That is about the limit of CPU temp above ambient - and ideally you'd want it lower than that.

    To run a TEC in a PC you use more electricity than you need to, have to deal with condensation around the CPU and mobo electrics (!), still have to cool the hot side of the peltier - which is even hotter than the CPU would have been itself, generally don't get the magic solution you might hope you would at first.

    the only interesting case I could see for it would be for low-power CPUs with ULV in laptops where potentially the hot-side could be made the entire base of the chassis. But the power hit probably still renders this impractical as it would dint battery life.
    Last edited by ik9000; 01-10-2016 at 10:08 AM.

  2. #2
    The late but legendary peterb - Onward and Upward peterb's Avatar
    Join Date
    Aug 2005
    Location
    Looking down & checking on swearing
    Posts
    19,381
    Thanks
    2,892
    Thanked
    3,403 times in 2,693 posts

    Re: TEC/Peltier effect CPU coolers - and why they're not very useful.

    Oh, yes, I rember that discussion! Fundamentally the problem still remains on how to remove the heat from the hot side of the peltier junction and take it to the outside of the case.

    As you say, realistically a laptop I'd probably the most practical application, but as you say, the power hit may not be worth it.

    Perhaps an indication of the practicality might be gauged by looking at the number of commercial designs that use peltier cooling in laptops or desktops.
    (\__/)
    (='.'=)
    (")_(")

    Been helped or just 'Like' a post? Use the Thanks button!
    My broadband speed - 750 Meganibbles/minute

  3. #3
    Senior Member
    Join Date
    Apr 2004
    Location
    The Third Foundation
    Posts
    919
    Thanks
    2
    Thanked
    99 times in 91 posts

    Re: TEC/Peltier effect CPU coolers - and why they're not very useful.

    I had to check the review to see what on earth you were talking about. Peltiers have long been used in extreme overclocking circles because it's absolute temperature that matters there, not efficiency.

    That all in one unit is an interesting piece of technology but, like closed loop coolers, seems to be principally aimed at those who choose based on the coolness-factor rather than anything practical.

  4. #4
    Laird Of The Glen jimborae's Avatar
    Join Date
    Oct 2003
    Location
    I come from a land of plenty......not
    Posts
    3,284
    Thanks
    221
    Thanked
    319 times in 261 posts
    • jimborae's system
      • Motherboard:
      • Gigabyte Z77X-UD5H
      • CPU:
      • Core i7 2600K@4.5Ghz
      • Memory:
      • Mushkin RipJaws DDR3 16Gig
      • Storage:
      • 1x Samsung 850Evo 500Gb SSD, 1 x WG 640Gb
      • Graphics card(s):
      • VTX R9 290 watercooled
      • PSU:
      • XFX 850W Black Edition
      • Case:
      • Phantek Enthoo Prime
      • Operating System:
      • Windows 7 Pro
      • Monitor(s):
      • 2 xDell 24"
      • Internet:
      • Vodafone 70Mb

    Re: TEC/Peltier effect CPU coolers - and why they're not very useful.

    Yikes! Are people still using TEC's??? I use to use them back in the day when I was overclocking to the max and managed to kill the odd motherboard & gpu due to condensation & voltage overload. Assumed, like me, these had gone the way of all flesh and that cooling tech & hardware had moved on.

  5. #5
    DDY
    DDY is offline
    Senior Member DDY's Avatar
    Join Date
    Jun 2006
    Posts
    2,739
    Thanks
    147
    Thanked
    566 times in 392 posts
    • DDY's system
      • Motherboard:
      • ASRock Z390M Pro 4
      • CPU:
      • i5 9600k
      • Memory:
      • 16GB (2x8GB) 3200MHz CL16 Corsair Vengence
      • Storage:
      • Adata SX8200 NVME 1TB
      • Graphics card(s):
      • RX 5700
      • PSU:
      • Seasonic Focus Gold 550W
      • Operating System:
      • Win 7 Pro
      • Monitor(s):
      • Dell U2715H

    Re: TEC/Peltier effect CPU coolers - and why they're not very useful.

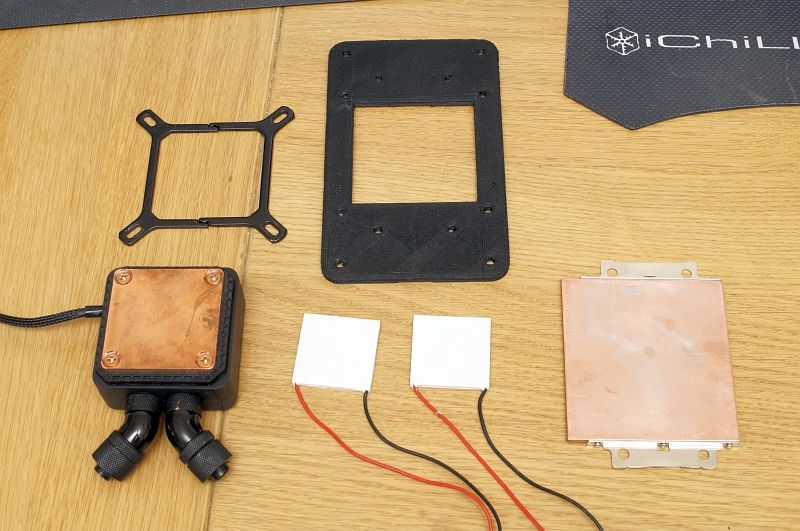

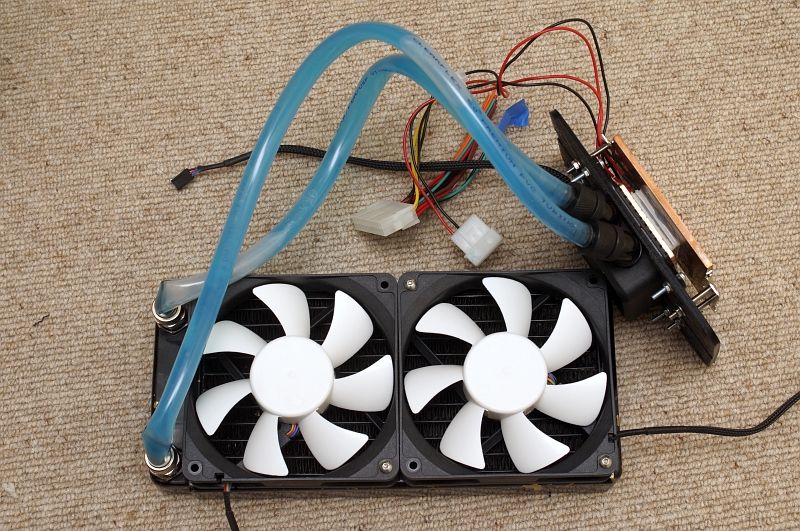

    Before I left to go back to university earlier this year, I was working on a cloud chamber cooled by a pair of TECs and a Fractal CPU watercooler I won in a Hexus competition.

    I can't remember the figures but the pelts were pulling nearly 180W, the radiator was toasty. This was as far as I got;
