Thread: virtual machines with different wireless adaptors

  1. #1
    fold fold fold!
    Join Date
    Nov 2008
    Posts
    511
    Thanks
    25
    Thanked
    32 times in 25 posts
    • shbris's system
      • CPU:
      • 1600x
      • Memory:
      • 16GB
      • Storage:
      • various ssd's
      • Graphics card(s):
      • gtx 1060 6gb
      • Case:
      • mini itx
      • Operating System:
      • Windows 10
      • Internet:
      • 100/10

    virtual machines with different wireless adaptors

    been messing around with virtual machine on windows 7 64bit, the xp one that comes with it

    just wondering whether there was a way to use a different wireless network usb device for the virtual machine than the one the host (not sure if thats right word) uses, as in they can connect to different networks: one to my main router, and one to the relay network

    just a technical question really, i like knowing things

  2. #2
    Senior Member oolon's Avatar
    Join Date
    Mar 2007
    Location
    London
    Posts
    2,294
    Thanks
    150
    Thanked
    302 times in 248 posts
    • oolon's system
      • Motherboard:
      • Asus P6T6
      • CPU:
      • Xeon w3680
      • Memory:
      • 3*4GB Kingston ECC
      • Storage:
      • 160GB Intel G2 SSD
      • Graphics card(s):
      • XFX HD6970 2GB
      • PSU:
      • Corsair HX850
      • Case:
      • Antec P183
      • Operating System:
      • Windows 7 Ultimate and Centos 5
      • Monitor(s):
      • Dell 2408WFP
      • Internet:
      • Be* Unlimied 6 down/1.2 up

    Re: virtual machines with different wireless adaptors

    With vmware you can push a generic usb device into the vm which then has the driver, make sure you don't load the drive on the host.

  3. Received thanks from:

    shbris (07-09-2009)

  4. #3
    fold fold fold!
    Join Date
    Nov 2008
    Posts
    511
    Thanks
    25
    Thanked
    32 times in 25 posts
    • shbris's system
      • CPU:
      • 1600x
      • Memory:
      • 16GB
      • Storage:
      • various ssd's
      • Graphics card(s):
      • gtx 1060 6gb
      • Case:
      • mini itx
      • Operating System:
      • Windows 10
      • Internet:
      • 100/10

    Re: virtual machines with different wireless adaptors

    so plug in device once virtual machine is running then run from there?

  5. #4
    Senior Member chrestomanci's Avatar
    Join Date
    Sep 2004
    Location
    Reading
    Posts
    1,614
    Thanks
    94
    Thanked
    96 times in 80 posts
    • chrestomanci's system
      • Motherboard:
      • Asus AMD AM4 Ryzen PRIME B350M
      • CPU:
      • AMD Ryzen 1600 @ stock clocks
      • Memory:
      • 16Gb DDR4 2666MHz
      • Storage:
      • 250Gb Samsung 960 Evo M.2 + 3Tb Western Digital Red
      • Graphics card(s):
      • Basic AMD GPU (OSS linux drivers)
      • PSU:
      • Novatech 500W
      • Case:
      • Silverstone Sugo SG02
      • Operating System:
      • Linux - Latest Xubuntu
      • Monitor(s):
      • BenQ 24" LCD (Thanks: DDY)
      • Internet:
      • Zen FTTC

    Re: virtual machines with different wireless adaptors

    As oolon says, with some Virtual machines, you can have a USB pass through so that the virtual machine sees and uses a USB device instead of the host OS. I have been doing that recently with Virtual Box so that I can use windows only devices on my Linux system.

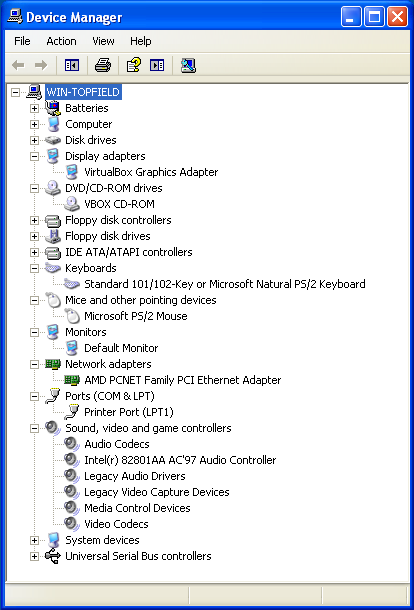

    The other thing to be aware of, is that with all virtual machines, the devices that the VM sees are all emulated. For example here is the device manager from a WinXP VM I am playing with:



    If you look closely you will see that some of the devices appear rather strange. Who uses an AMD network card for example. (The real hardware spec of my system is on the my system link). The reason for those strange device choices is that those are devices where the VM makers know exactly how they will behave so they can emulate every detail of their operation.

    Back to the topic, what all this means is that short of using USB, your virtual machine will never see your physical devices. It will only ever see emulated versions of them.

    What you may be able to do with a more advanced setup is create routing tables so that network traffic from your VM will only go via a particular network interface, and all other processes on your host OS don't use that interface, but doing things like that will be quite advanced.

  6. Received thanks from:

    shbris (07-09-2009)

  7. #5
    Senior Member oolon's Avatar
    Join Date
    Mar 2007
    Location
    London
    Posts
    2,294
    Thanks
    150
    Thanked
    302 times in 248 posts
    • oolon's system
      • Motherboard:
      • Asus P6T6
      • CPU:
      • Xeon w3680
      • Memory:
      • 3*4GB Kingston ECC
      • Storage:
      • 160GB Intel G2 SSD
      • Graphics card(s):
      • XFX HD6970 2GB
      • PSU:
      • Corsair HX850
      • Case:
      • Antec P183
      • Operating System:
      • Windows 7 Ultimate and Centos 5
      • Monitor(s):
      • Dell 2408WFP
      • Internet:
      • Be* Unlimied 6 down/1.2 up

    Re: virtual machines with different wireless adaptors

    Quote Originally Posted by shbris View Post
    so plug in device once virtual machine is running then run from there?
    Yes, that would be best for the first time. With Vmware it remembers which ones were routed into the guest so if you start the guest and the device is present then vmware assumes you want you guest to see it.

  8. #6
    fold fold fold!
    Join Date
    Nov 2008
    Posts
    511
    Thanks
    25
    Thanked
    32 times in 25 posts
    • shbris's system
      • CPU:
      • 1600x
      • Memory:
      • 16GB
      • Storage:
      • various ssd's
      • Graphics card(s):
      • gtx 1060 6gb
      • Case:
      • mini itx
      • Operating System:
      • Windows 10
      • Internet:
      • 100/10

    Re: virtual machines with different wireless adaptors

    ok i think that's answered my question perfectly, i can route the VM to use usb dongle and the host machine can use the cat5.

    i'll have a play around with it and see how i go, cheers guys
