Thread: New HTPC build.. m-itx... thoughts?

  1. #1
    cat /dev/null streetster's Avatar
    Join Date
    Jul 2003
    Location
    London
    Posts
    4,138
    Thanks
    119
    Thanked
    100 times in 82 posts
    • streetster's system
      • Motherboard:
      • Asus P7P55D-E
      • CPU:
      • Intel i5 750 2.67 @ 4.0Ghz
      • Memory:
      • 4GB Corsair XMS DDR3
      • Storage:
      • 2x1TB Drives [RAID0]
      • Graphics card(s):
      • 2xSapphire HD 4870 512MB CrossFireX
      • PSU:
      • Corsair HX520W
      • Case:
      • Coolermaster Black Widow
      • Operating System:
      • Windows 7 x64
      • Monitor(s):
      • DELL U2311
      • Internet:
      • Virgin 50Mb

    New HTPC build.. m-itx... thoughts?

    Hey guys,

    I'm looking at building a little htpc to hook up to my tv such that i can watch various 720/1080p x264 files, bluray, dvds, etc...

    I thought about getting a popcorn hour but wanted something a bit more powerful + a bluray drive...

    So far I'm thinking:

    Silverstone SST-LC12 Black case [img] [link] [£120]

    Zotac 9300 itx motherboard [image] [link] [£120]

    Slimline bluray drive [image] [link] [£140]

    Intel Pentium Dual-Core E5200 [link] [£55]

    Then stick in a ~500gb/750gb harddrive in there and maybe 2gb ram depending on the OS.

    Though this is already £120+£120+£140+55 (+hdd&memory = £60?) = £500ish?

    What OS do you guys reckon i should use? ubuntu + boxee? or xp mce? or wait for Windows 7 (MCE) 64bit?

    Will the E5200 be up to decoding 1080p x264?

    Anyone doing/done a similar build?

    [e!]

    a few pics of the build are available here - i'll add some better ones when i get access to a proper (non-phone) camera - plus a few of it running xbmc+aeon
    Last edited by streetster; 27-05-2009 at 10:22 PM.

  2. #2
    finding nemo staffsMike's Avatar
    Join Date
    Jan 2007
    Posts
    11,497
    Thanks
    197
    Thanked
    794 times in 741 posts
    • staffsMike's system
      • Motherboard:
      • evga 680i
      • CPU:
      • e6600
      • Memory:
      • geil ultra pc6400
      • Storage:
      • WD 320gb
      • Graphics card(s):
      • leadtek 8800 GTS 640mb
      • PSU:
      • ocz gameXstream 700w
      • Case:
      • akasa eclipse
      • Monitor(s):
      • dell 2007wfp and Lg L194WT
      • Internet:
      • pipex homecall

    Re: New HTPC build.. m-itx... thoughts?

    Probably just get n E5200 and save £40 but that looks good.

  3. Received thanks from:

    streetster (25-04-2009)

  4. #3
    Bows out! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Hopefully somewhere less backstabby
    Posts
    28,789
    Thanks
    3,203
    Thanked
    4,456 times in 3,442 posts
    • CAT-THE-FIFTH's system
      • Motherboard:
      • Less E-PEEN
      • CPU:
      • Massive E-PEEN
      • Memory:
      • RGB E-PEEN
      • Storage:
      • Not in any order
      • Graphics card(s):
      • EVEN BIGGER E-PEEN
      • PSU:
      • OVERSIZED
      • Case:
      • UNDERSIZED
      • Operating System:
      • DOS 6.22
      • Monitor(s):
      • NOT USUALLY ON....WHEN I POST
      • Internet:
      • FUNCTIONAL

    Re: New HTPC build.. m-itx... thoughts?

    I would look at this review of the case:

    http://www.silentpcreview.com/article701-page1.html

    It does have some thermal issues.

    According to this review of the Zotac motherboard with an E5200 it should do fine with HD media playback:

    http://www.bit-tech.net/hardware/mot...-wifi-review/7


    Those despicable Elk,stealing the pond weed!

  5. Received thanks from:

    streetster (25-04-2009)

  6. #4
    Overclocking Since 1988 nightkhaos's Avatar
    Join Date
    Apr 2009
    Location
    Sydney, AU
    Posts
    1,415
    Thanks
    93
    Thanked
    127 times in 106 posts

    Re: New HTPC build.. m-itx... thoughts?

    Because you want to play BluRay it would probably be best to wait for Win7 MCE as Linux's BluRay support can sometimes be less than optimum.

  7. Received thanks from:

    streetster (25-04-2009)

  8. #5
    Senior Member
    Join Date
    Feb 2008
    Posts
    880
    Thanks
    4
    Thanked
    143 times in 132 posts
    • smargh's system
      • Motherboard:
      • Gigabyte GA-EP45-UD3P
      • CPU:
      • Xeon E5450 with 775-to-771 Mod
      • Memory:
      • 16GB Crucial
      • Storage:
      • Intel X25-M G2 80GB/Adaptec 3405 4x 2TB Ultrastar RAID1 / 1x 6TB Hitachi He6 / Dying 2TB Samsung
      • Graphics card(s):
      • GTX 750 Ti
      • PSU:
      • Seasonic X-560
      • Case:
      • Lian-Li PC-A71
      • Operating System:
      • Windows 7 Ultimate 64bit
      • Monitor(s):
      • BenQ G2400WD
      • Internet:
      • Really Crap ADSL2 <3Mbit

    Re: New HTPC build.. m-itx... thoughts?

    I've just set up a Gigabyte GA-E7AUM-DS2H with an E5200. The onboard graphics plays 1080p and blu-ray discs perfectly. It was housed in an Antec NSK2480 with a Scythe Ninja Mini, and everything is always very very cool inside, and it's very quiet - I didn't even bother with any CPU grease. You really do need to think about airflow - that case you linked to looks terrible for it.

    If you go the Windows route, Vista is preferred - it's better for a few reasons, I think mainly being able to use the normal MCE remote and some kind of decoding/audio thingy I never bothered to read up on.

    This is the definitive thread about the GA-E7AUM-DS2H:
    http://www.avsforum.com/avs-vb/showthread.php?t=1087407

  9. Received thanks from:

    streetster (25-04-2009)

  10. #6
    Not a good person scaryjim's Avatar
    Join Date
    Jan 2009
    Location
    Manchester
    Posts
    14,995
    Thanks
    1,187
    Thanked
    2,230 times in 1,835 posts
    • scaryjim's system
      • Motherboard:
      • Dell Inspiron
      • CPU:
      • Core i5 8250U
      • Memory:
      • 1x 8GB DDR4 2400
      • Storage:
      • 128GB M.2 SSD + 1TB HDD
      • Graphics card(s):
      • Radeon R5 230
      • PSU:
      • Battery/Dell brick
      • Case:
      • Dell Inspiron 5570
      • Operating System:
      • Windows 10
      • Monitor(s):
      • 15" 1080p laptop panel

    Re: New HTPC build.. m-itx... thoughts?

    I'd personally wait for Windows 7 rather than get Vista now then have to shell out for an upgrade! The RC will be on public release from 5th May, and will reportedly have a 1 year lifespan, so you could use that in the interim!

    I quite like this Compucase case for a budget option (&#163;45) with plenty of space and power (120W!), or this Cubid case for a slightly more stylish approach (&#163;74) - although I'm not entirely sure what the power rating of its psu is...

  11. Received thanks from:

    streetster (27-04-2009)

  12. #7
    cat /dev/null streetster's Avatar
    Join Date
    Jul 2003
    Location
    London
    Posts
    4,138
    Thanks
    119
    Thanked
    100 times in 82 posts
    • streetster's system
      • Motherboard:
      • Asus P7P55D-E
      • CPU:
      • Intel i5 750 2.67 @ 4.0Ghz
      • Memory:
      • 4GB Corsair XMS DDR3
      • Storage:
      • 2x1TB Drives [RAID0]
      • Graphics card(s):
      • 2xSapphire HD 4870 512MB CrossFireX
      • PSU:
      • Corsair HX520W
      • Case:
      • Coolermaster Black Widow
      • Operating System:
      • Windows 7 x64
      • Monitor(s):
      • DELL U2311
      • Internet:
      • Virgin 50Mb

    Re: New HTPC build.. m-itx... thoughts?

    Hi Guys,

    firstly, thanks for all the input!

    staffsMike - yup, i think i ninja-editted as you were posting as it seems to have similar performance (and insane o/c potential, tho probably not in an itx box) as the c2d.

    cat-the-fifth - thanks for the review, hadn't seen that, the thermal issues look like they could be a bit of a bugger, unless i crowbar'd in a 92mm/80mm fan to sit inside somewhere (i doubt the cpu hsf would shift enough air to cool the northbridge/gpu chipset.

    nightkhaos - ta, just had a look and ubuntu seems a bit sketchy ( i dont want to have to rip a bluray to my hdd to remove the drm and watch it...)

    smargh - that mobo is matx from the looks of it? vista/win7 is something i'll decide closer to the time of the build - might slap rc1 on there and see how it performs

    scaryjim - not so keen on the compucase but saw the cubid and read a review and it looks quite cool - 60mm fan should help with the airflow too - review here suggests ~60w (12v * 4.58A) so might have to drop a 120w picoPSU in there as i doubt 60w is enough for cpu+mobo+hdd+bluray - but i'd probably have to get the pico even if i got that silverstone case as ive read .

    Exciting stuff, bring on payday

  13. #8
    Senior Member
    Join Date
    Jul 2007
    Posts
    519
    Thanks
    2
    Thanked
    16 times in 14 posts
    • McPhee's system
      • Motherboard:
      • Asus P8H67 Pro
      • CPU:
      • Intel i5 2400
      • Memory:
      • 4GB Crucial DDR3-1033
      • Storage:
      • 128GB Kingston SSDNow V2+
      • Graphics card(s):
      • Asus GTX460
      • PSU:
      • BeQuiet 550W
      • Case:
      • Antec 900
      • Operating System:
      • Windows 7
      • Monitor(s):
      • 19" Samsung 941BW
      • Internet:
      • 1Mbps

    Re: New HTPC build.. m-itx... thoughts?

    What are you doing with that PCI-E x16 port? If you're not using it then there's a much bigger selection of boards you could use instead. Most of them are cheaper and some run cooler (hopefully removing any thermal issues with that Silverstone case).

    Also, no IDE ports on the Zotac board. If you're using an adaptor then make sure there's enough room for them to fit (there isn't in the SG05).

  14. #9
    Senior Member walibe's Avatar
    Join Date
    Jul 2003
    Location
    Lyneham
    Posts
    941
    Thanks
    22
    Thanked
    24 times in 18 posts
    • walibe's system
      • Motherboard:
      • ASUS P8P67B Pro
      • CPU:
      • iMac 2017
      • Memory:
      • 16 Gig Corsair Vegence
      • Storage:
      • 10 T.B Total
      • Graphics card(s):
      • Nvida GTX 755M
      • Operating System:
      • Mavericks / Windows 8.1
      • Monitor(s):
      • 27"
      • Internet:
      • BT Fibre

    Re: New HTPC build.. m-itx... thoughts?

    I'm looking to use that board in a custom mini-itx case. It gets my vote and blu ray play back out of the box with the on board is great, having said that the atom + ion (is it called ion?) combination is looking promising if prices drop.

    I wish you luck!

    Oh and for the bit extra I would get the slot loading blu-ray drive, its just more conveniant that only a partialy ejecting laptop drive. Also on your OS. Win 7 definatly. I've been using it alot lately and its superb, it puts vista to shame and has never locked up on me without recovbering itself. My reset button only had to be used when Crysis went a bit crazy on me. The Media centre has some nice improvements but is pretty similar to what you recognise in Vista and MCE.
    Laptop - Macbook Pro Retina 13" (Early 2015) i5/8GB/256GB
    Desktop 1 - iMac 27" (late 2012) i7/32GB/1TB Fusion Drive
    Desktop 2 - i7 2600K/32GB/1TB/GTX 760
    Server - HP DL160 G6 2 x Hex Core Xenon x5650/64GB/8TB
    NAS - ASUSTOR 604T ATOM Dual Core/3GB/16TB

  15. #10
    Senior Member Alistair's Avatar
    Join Date
    Jul 2003
    Location
    Dundee
    Posts
    777
    Thanks
    30
    Thanked
    11 times in 10 posts

    Re: New HTPC build.. m-itx... thoughts?

    Thinking about going down the mini itx route myself & was looking at the Sugo SG05 until I saw this on another forum:

    http://www.lian-li.com/v2/en/product...25&ss_index=63

    I could use a std PSU & optical drive. Might be worth considering

  16. #11
    Senior Member
    Join Date
    Sep 2006
    Posts
    493
    Thanks
    10
    Thanked
    34 times in 31 posts

    Re: New HTPC build.. m-itx... thoughts?

    Quote Originally Posted by Alistair View Post
    Thinking about going down the mini itx route myself & was looking at the Sugo SG05 until I saw this on another forum:

    http://www.lian-li.com/v2/en/product...25&ss_index=63

    I could use a std PSU & optical drive. Might be worth considering
    Looks good, though no option to instal dual-slot graphics :/
    Wonder what's the price on it.

  17. #12
    cat /dev/null streetster's Avatar
    Join Date
    Jul 2003
    Location
    London
    Posts
    4,138
    Thanks
    119
    Thanked
    100 times in 82 posts
    • streetster's system
      • Motherboard:
      • Asus P7P55D-E
      • CPU:
      • Intel i5 750 2.67 @ 4.0Ghz
      • Memory:
      • 4GB Corsair XMS DDR3
      • Storage:
      • 2x1TB Drives [RAID0]
      • Graphics card(s):
      • 2xSapphire HD 4870 512MB CrossFireX
      • PSU:
      • Corsair HX520W
      • Case:
      • Coolermaster Black Widow
      • Operating System:
      • Windows 7 x64
      • Monitor(s):
      • DELL U2311
      • Internet:
      • Virgin 50Mb

    Re: New HTPC build.. m-itx... thoughts?

    McPhee - not going to use the pci-e slot, no room in the case for a card, might look into the AMD offerings - potentially heat, watts and cost-wise.. I'd get SATA hdd and SATA bluray drive so should be nothing to worry about IDE-wise.

    walibe - the dual core (330 is it?) atoms look potentially interesting though need to check how good they are at 1080p non-hardware accelerated x264 playback. slot-loading drive is a good shout, just got to find one (in black) at a decent price.

    Alistair - i've always liked the lian-li cases, though i want a really small box to sit under/next to the tv, i'd go for a matx build if i wanted something a bit bigger...

    It's payday in ~2 weeks time so might look into buying the case and workout out whether i'd need to stick either a 80/92mm fan in the top (ie crack out the jig-saw), and stick just a heatsink on the CPU or maybe stick a 60mm fan in the side of the case... decisions decisions.

    Regarding Win7, i've got a spare xp license and i've been looking at XBMC with the Aeon/Stark skin and it looks pretty swish, so might give that a go instead of win7+mce...

  18. #13
    Senior Member walibe's Avatar
    Join Date
    Jul 2003
    Location
    Lyneham
    Posts
    941
    Thanks
    22
    Thanked
    24 times in 18 posts
    • walibe's system
      • Motherboard:
      • ASUS P8P67B Pro
      • CPU:
      • iMac 2017
      • Memory:
      • 16 Gig Corsair Vegence
      • Storage:
      • 10 T.B Total
      • Graphics card(s):
      • Nvida GTX 755M
      • Operating System:
      • Mavericks / Windows 8.1
      • Monitor(s):
      • 27"
      • Internet:
      • BT Fibre

    Re: New HTPC build.. m-itx... thoughts?

    Quote Originally Posted by streetster View Post

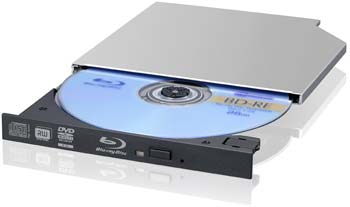

    slot-loading drive is a good shout, just got to find one (in black) at a decent price.
    Scan have one for £136here: http://www.scan.co.uk/Products/Optia...SATA-Black-OEM

    Hope that helps, its probably the one I will use. Will be following your build with interest a I think your likely to use the same products as I want to .

    PJ
    Laptop - Macbook Pro Retina 13" (Early 2015) i5/8GB/256GB
    Desktop 1 - iMac 27" (late 2012) i7/32GB/1TB Fusion Drive
    Desktop 2 - i7 2600K/32GB/1TB/GTX 760
    Server - HP DL160 G6 2 x Hex Core Xenon x5650/64GB/8TB
    NAS - ASUSTOR 604T ATOM Dual Core/3GB/16TB

  19. Received thanks from:

    streetster (07-05-2009)

  20. #14
    cat /dev/null streetster's Avatar
    Join Date
    Jul 2003
    Location
    London
    Posts
    4,138
    Thanks
    119
    Thanked
    100 times in 82 posts
    • streetster's system
      • Motherboard:
      • Asus P7P55D-E
      • CPU:
      • Intel i5 750 2.67 @ 4.0Ghz
      • Memory:
      • 4GB Corsair XMS DDR3
      • Storage:
      • 2x1TB Drives [RAID0]
      • Graphics card(s):
      • 2xSapphire HD 4870 512MB CrossFireX
      • PSU:
      • Corsair HX520W
      • Case:
      • Coolermaster Black Widow
      • Operating System:
      • Windows 7 x64
      • Monitor(s):
      • DELL U2311
      • Internet:
      • Virgin 50Mb

    Re: New HTPC build.. m-itx... thoughts?

    Well the case has been ordered @ &#163;136 inc delivery from kustom, could be a while for that to arrive, then it'll be payday and time to look at the rest of the components

  21. #15
    Not a good person scaryjim's Avatar
    Join Date
    Jan 2009
    Location
    Manchester
    Posts
    14,995
    Thanks
    1,187
    Thanked
    2,230 times in 1,835 posts
    • scaryjim's system
      • Motherboard:
      • Dell Inspiron
      • CPU:
      • Core i5 8250U
      • Memory:
      • 1x 8GB DDR4 2400
      • Storage:
      • 128GB M.2 SSD + 1TB HDD
      • Graphics card(s):
      • Radeon R5 230
      • PSU:
      • Battery/Dell brick
      • Case:
      • Dell Inspiron 5570
      • Operating System:
      • Windows 10
      • Monitor(s):
      • 15" 1080p laptop panel

    Re: New HTPC build.. m-itx... thoughts?

    Cool bits. As you've probably already seen there's some ION mini-itx boards coming with the Atom 330, so depending on how long they take to get to etailers it might be worth waiting for one of those...

  22. Received thanks from:

    streetster (08-05-2009)

  23. #16
    Bows out! CAT-THE-FIFTH's Avatar
    Join Date
    Aug 2006
    Location
    Hopefully somewhere less backstabby
    Posts
    28,789
    Thanks
    3,203
    Thanked
    4,456 times in 3,442 posts
    • CAT-THE-FIFTH's system
      • Motherboard:
      • Less E-PEEN
      • CPU:
      • Massive E-PEEN
      • Memory:
      • RGB E-PEEN
      • Storage:
      • Not in any order
      • Graphics card(s):
      • EVEN BIGGER E-PEEN
      • PSU:
      • OVERSIZED
      • Case:
      • UNDERSIZED
      • Operating System:
      • DOS 6.22
      • Monitor(s):
      • NOT USUALLY ON....WHEN I POST
      • Internet:
      • FUNCTIONAL

    Re: New HTPC build.. m-itx... thoughts?



    Those despicable Elk,stealing the pond weed!

  24. Received thanks from:

    peterb (09-05-2009),streetster (08-05-2009)

Page 1 of 4 1234 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Similar Threads

  1. Views on new HTPC build
    By gaz12 in forum PC Hardware and Components
    Replies: 12
    Last Post: 15-03-2009, 06:28 PM
  2. HTPC 1st build
    By chipper36 in forum abit.care@HEXUS
    Replies: 11
    Last Post: 18-08-2007, 05:19 PM
  3. Any companies build exactly to your spec?
    By BrianS in forum PC Hardware and Components
    Replies: 22
    Last Post: 08-08-2007, 08:21 PM
  4. Replies: 18
    Last Post: 29-05-2007, 03:20 AM
  5. HTPC 32bit or possible use for 64bit ?
    By ikonia in forum Software
    Replies: 7
    Last Post: 06-05-2005, 05:28 PM

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
