Thread: Gigabit LAN, real world speeds

  1. #1
    Registered+
    Join Date
    Aug 2006
    Posts
    85
    Thanks
    12
    Thanked
    0 times in 0 posts

    Gigabit LAN, real world speeds

    This is for anyone with a NAS setup. I'm looking at building at getting a NAS (WD Duo 4TB is on the shortlist at the moment) and wondering what sort of real world transfer speeds I can expect? For example how long would it take to transfer 2-3 GB folder assuming a wired connection between my PC to the router to the NAS? Would it be quicker if it was a 2-3 GB zipped file? How about a 4-5 GB movie?

    Also- my PC has a SATA III WD Caviar Black Drive - if that helps.

    Just curious to know whether the NAS setup would work for me.

  2. #2
    Does he need a reason? Funkstar's Avatar
    Join Date
    Aug 2005
    Location
    Aberdeen
    Posts
    19,874
    Thanks
    630
    Thanked
    965 times in 816 posts
    • Funkstar's system
      • Motherboard:
      • Gigabyte EG45M-DS2H
      • CPU:
      • Intel Core2Quad Q9550 (2.83GHz)
      • Memory:
      • 8GB OCZ PC2-6400C5 800MHz Quad Channel
      • Storage:
      • 650GB Western Digital Caviar Blue
      • Graphics card(s):
      • 512MB ATI Radeon HD4550
      • PSU:
      • Antec 350W 80+ Efficient PSU
      • Case:
      • Antec NSK1480 Slim Mini Desktop Case
      • Operating System:
      • Vista Ultimate 64bit
      • Monitor(s):
      • Dell 2407 + 2408 monitors
      • Internet:
      • Zen 8mb

    Re: Gigabit LAN, real world speeds

    The last time I used an off the shelf NAS, they weren't able to saturate a gigabit connection. At the very most you are likely to get about 60MB/sec out of a gigabit connection (I have no idea what the WD Duo will give you), which means about 17 seconds per gigabyte.

    Transferring a single zipped file will be much faster than hundreds and hundreds of small files and folders. he kind of file will have no difference on transfer times, so a movie file will take the same time as a zip of the same file size.

  3. Received thanks from:

    iftiq (21-07-2013)

  4. #3
    Pork & Beans Powerup Phage's Avatar
    Join Date
    May 2009
    Location
    Kent
    Posts
    6,093
    Thanks
    1,519
    Thanked
    578 times in 494 posts
    • Phage's system
      • Motherboard:
      • Asus Crosshair VI
      • CPU:
      • 1700x @ 3.9
      • Memory:
      • 16Gb Corsair LPX
      • Storage:
      • Samsung 960 512Gb + 2Tb Seagate SSHD
      • Graphics card(s):
      • EVGA 1080ti
      • PSU:
      • BeQuiet 850w
      • Case:
      • Fractal R4
      • Operating System:
      • W10 64
      • Monitor(s):
      • Agon Gsync

    Re: Gigabit LAN, real world speeds

    Windows 8 on my gigabit network tells me that I get approx 35mbs. Don't know if that's true but it is noticeably faster for backups and file transfers.
    Society's to blame,
    Or possibly Atari.

  5. #4
    Studmuffin Flibb's Avatar
    Join Date
    Jul 2003
    Location
    Kent
    Posts
    4,904
    Thanks
    31
    Thanked
    324 times in 277 posts
    • Flibb's system
      • Motherboard:
      • Gigabyte GA-970A-UD3
      • CPU:
      • AMD FX-6300
      • Memory:
      • 16GB Crucial Ballistix DDR3 PC3-12800
      • Storage:
      • Samsung SSD 840 EVO 250G
      • Graphics card(s):
      • 3GB MSI Radeon HD 7950 Twin Frozr
      • PSU:
      • FSP
      • Operating System:
      • Win7 64bit
      • Monitor(s):
      • Deffl TFT thing

    Re: Gigabit LAN, real world speeds

    Out of interest thought I would try this test.

    Folder containing a 1.82GB AVI file, takes 58 sec to copy from my ageing ReadyNas Duo to the SSD on my Win7 64 desktop PC.

    But to copy back takes 8 minutes. Havent a clue why, then again havent had a coffee yet either.

    Network is a netgear 8 port prosafe (PC and redynas plugged into this) with a Billion BiPAC 7700N wireless router / adsl2 modem thing handling the internet.

    Right time for a coffee, instant or do I warm the espresso machine up and fire up the grinder ?

  6. Received thanks from:

    iftiq (21-07-2013)

  7. #5
    root Member DanceswithUnix's Avatar
    Join Date
    Jan 2006
    Location
    In the middle of a core dump
    Posts
    10,005
    Thanks
    496
    Thanked
    1,032 times in 876 posts
    • DanceswithUnix's system
      • Motherboard:
      • Asus X470-PRO
      • CPU:
      • 3700X
      • Memory:
      • 16GB 3200MHz
      • Storage:
      • 1TB Linux, 1TB Games (Win 10)
      • Graphics card(s):
      • Asus Strix RX Vega 56
      • PSU:
      • 650W Corsair TX
      • Case:
      • Antec 300
      • Operating System:
      • Fedora 30 + Win 10 Pro 64 (yuk)
      • Monitor(s):
      • Benq XL2730Z 1440p + Samsung 2343BW 2048x1152
      • Internet:
      • Zen 80Mb/20Mb VDSL

    Re: Gigabit LAN, real world speeds

    If you want low cost and ease of use, then an off the shelf NAS should be great.

    If performance is really important to you, then you might want to look into FreeNAS running on a low end PC. That WD NAS has a PowerPC 800MHz CPU in it, which isn't bad (and a nice change from the ARM chips that most of them have). It also has 256MB of ram, which can't cache much. Compare that to a low end PC, a cheap Socket FM2 A4000 is dual core 3GHz, enough to saturate a single gigabit connection. You can stick plenty of ram in it to keep all the directory structures etc cached for extra speed. Much more work, specially if you want the machine really quiet, but the cheapest way I can think of to get performance.

  8. #6
    Senior Member
    Join Date
    Mar 2005
    Posts
    4,577
    Thanks
    145
    Thanked
    309 times in 247 posts
    • badass's system
      • Motherboard:
      • ASUS P8Z77-m pro
      • CPU:
      • Core i5 3570K
      • Memory:
      • 32GB
      • Storage:
      • 1TB Samsung 850 EVO, 2TB WD Green
      • Graphics card(s):
      • Radeon RX 580
      • PSU:
      • Corsair HX520W
      • Case:
      • Silverstone SG02-F
      • Operating System:
      • Windows 10 X64
      • Monitor(s):
      • Del U2311, LG226WTQ
      • Internet:
      • 80/20 FTTC

    Re: Gigabit LAN, real world speeds

    Quote Originally Posted by DanceswithUnix View Post
    If you want low cost and ease of use, then an off the shelf NAS should be great.

    If performance is really important to you, then you might want to look into FreeNAS running on a low end PC. That WD NAS has a PowerPC 800MHz CPU in it, which isn't bad (and a nice change from the ARM chips that most of them have). It also has 256MB of ram, which can't cache much. Compare that to a low end PC, a cheap Socket FM2 A4000 is dual core 3GHz, enough to saturate a single gigabit connection. You can stick plenty of ram in it to keep all the directory structures etc cached for extra speed. Much more work, specially if you want the machine really quiet, but the cheapest way I can think of to get performance.
    I tries FreeNAS is VM's in the past (>1 year ago) and found its network performance to be poor compared to other solutions such as Nexentastor, Openfiler or even just running a VM with windows on it.
    Host was an HP microserver N36L with 8GB RAM rinning on ESXi 5.0
    "In a perfect world... spammers would get caught, go to jail, and share a cell with many men who have enlarged their penises, taken Viagra and are looking for a new relationship."

  9. #7
    <<== UT3 Player spoon_'s Avatar
    Join Date
    Nov 2008
    Location
    London
    Posts
    2,067
    Thanks
    113
    Thanked
    139 times in 131 posts

    Re: Gigabit LAN, real world speeds

    No issues with GbE speed and off the shelf NAS box here although it could be bit faster:


  10. #8
    Registered+
    Join Date
    Aug 2006
    Posts
    85
    Thanks
    12
    Thanked
    0 times in 0 posts

    Re: Gigabit LAN, real world speeds

    Wow- that seems much faster than what I have seen / read elsewhere. Which model NAS are you using? Router?

    Thanks!

  11. #9
    Nefarious Networker Dareos's Avatar
    Join Date
    Dec 2006
    Location
    Larkhall, Scotland
    Posts
    3,347
    Thanks
    447
    Thanked
    395 times in 292 posts
    • Dareos's system
      • Motherboard:
      • Gigabyte Z77 - UD3H
      • CPU:
      • Intel i5 Ivy Bridge
      • Memory:
      • 16GB Corsair Vengeance
      • Storage:
      • Crucial M4 128GB, Seagate Barracuda 2TB
      • Graphics card(s):
      • Gigabyte Geforce 670 OC Windforce x 2
      • PSU:
      • Corsair 1050 Modular
      • Case:
      • Fractal R3
      • Operating System:
      • Win 7
      • Monitor(s):
      • 27" DGM and 40" Samsung TV
      • Internet:
      • 152 Mb Virgin

    Re: Gigabit LAN, real world speeds

    Quote Originally Posted by Flibb View Post
    Out of interest thought I would try this test.

    Folder containing a 1.82GB AVI file, takes 58 sec to copy from my ageing ReadyNas Duo to the SSD on my Win7 64 desktop PC.

    But to copy back takes 8 minutes. Havent a clue why, then again havent had a coffee yet either.

    Network is a netgear 8 port prosafe (PC and redynas plugged into this) with a Billion BiPAC 7700N wireless router / adsl2 modem thing handling the internet.

    Right time for a coffee, instant or do I warm the espresso machine up and fire up the grinder ?
    could this be down to the read speeds on the NAS and write speeds on teh SSD being high and the read speeds on the SSD being high but the write speeds on the NAS being comparatively low?

    just a thought, without a closer examination cant make anything more than an educated guess
    We're only here for the Banter - The Luvvies - Chewin' The Fat

    Violence and Lubrication is the solution to fixing everything, if it still doesn't work, you need more lubrication.

    Quote Originally Posted by this_is_gav View Post
    How do you change the height of them?

    I've just had a quick fiddle with the knob at the front :\

  12. #10
    DDY
    DDY is offline
    Senior Member DDY's Avatar
    Join Date
    Jun 2006
    Posts
    2,720
    Thanks
    145
    Thanked
    561 times in 387 posts
    • DDY's system
      • Motherboard:
      • ASRock Z77M
      • CPU:
      • i5 2500K @ 4.2
      • Memory:
      • 16GB (2x8GB) 1600MHz Crucial Tracer
      • Storage:
      • Crucial MX100 512GB
      • Graphics card(s):
      • HD777777770
      • PSU:
      • Seasonic G550
      • Operating System:
      • Win 7 Pro
      • Monitor(s):
      • Dell U2715H

    Re: Gigabit LAN, real world speeds

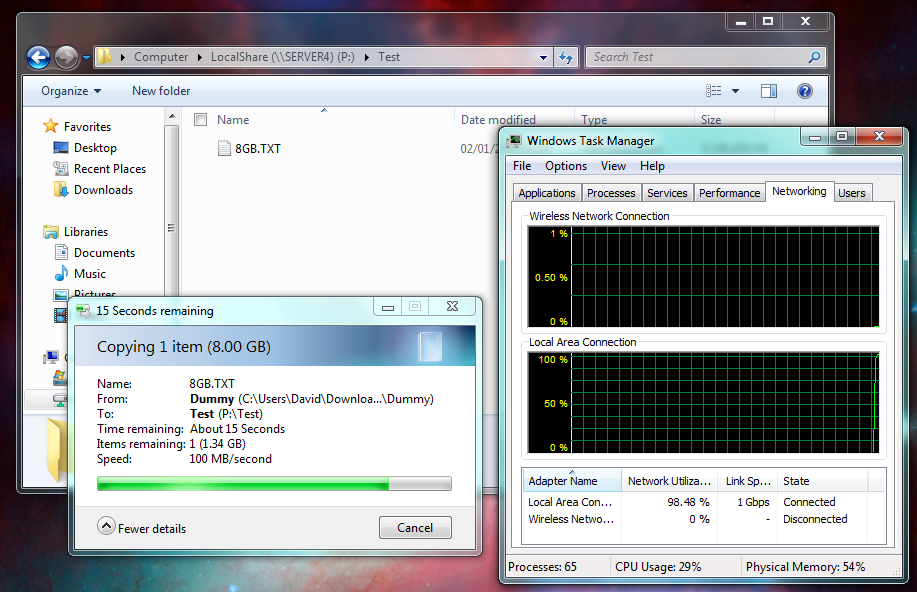

    My HP Microserver running server 2008 r2 can average 100MB/s transferring large files over my gigabit network.


  13. #11
    Senior Member
    Join Date
    Feb 2006
    Posts
    1,663
    Thanks
    84
    Thanked
    65 times in 58 posts
    • pp05's system
      • Motherboard:
      • AsRock Fatal1ty B450 Gaming itx
      • CPU:
      • Ryzen 3 2200G
      • Memory:
      • Ballistix Elite 8GB Kit 3200 UDIMM
      • Storage:
      • Kingston 240gb SSD
      • PSU:
      • Kolink SFX 350W PSU
      • Case:
      • Kolink Sattelite plus MITX
      • Operating System:
      • Windows 10

    Re: Gigabit LAN, real world speeds

    For a NAS I would have thought anything over SATA II was overkill because then you add noise and heat into equation. A faster processor and plenty of RAM go long way but they also add to the cost.

  14. #12
    Senior Member watercooled's Avatar
    Join Date
    Jan 2009
    Posts
    10,845
    Thanks
    1,500
    Thanked
    934 times in 804 posts

    Re: Gigabit LAN, real world speeds

    The performance of the NAS (combination of CPU performance and, by extension, efficiency of the software implementation) is often the bottleneck for consumer NAS boxes. One explanation for for Flibb's results could be fragmentation on the NAS HDD, especially if it's relatively full?

    My HP Microserver running Debian essentially saturates GigE, with sequential transfers at least. Network switches (including the LAN side of a router, which is basically just a switch) etc shouldn't have any impact on transfer speed unless they're faulty.

  15. #13
    Laird Of The Glen jimborae's Avatar
    Join Date
    Oct 2003
    Location
    I come from a land of plenty......not
    Posts
    3,232
    Thanks
    206
    Thanked
    303 times in 247 posts
    • jimborae's system
      • Motherboard:
      • Gigabyte Z77X-UD5H
      • CPU:
      • Core i7 2600K@4.5Ghz
      • Memory:
      • Mushkin RipJaws DDR3 16Gig
      • Storage:
      • 1x Samsung 850Evo 500Gb SSD, 1 x WG 640Gb
      • Graphics card(s):
      • VTX R9 290 watercooled
      • PSU:
      • XFX 850W Black Edition
      • Case:
      • Phantek Enthoo Prime
      • Operating System:
      • Windows 7 Pro
      • Monitor(s):
      • 2 xDell 24"
      • Internet:
      • Vodafone 70Mb

    Re: Gigabit LAN, real world speeds

    On my HP N40l I get anywhere between 30Mb/s and 130Mb/s (depending on file type & size it would seem). Also this is using a proper hardware raid card (HP 410/512)
    Last edited by jimborae; 23-07-2013 at 01:05 PM.

  16. #14
    Senior Member Pob255's Avatar
    Join Date
    Apr 2007
    Location
    The land of Brum
    Posts
    9,945
    Thanks
    572
    Thanked
    1,196 times in 1,099 posts
    • Pob255's system
      • Motherboard:
      • Asus M5A99X EVO
      • CPU:
      • PhenomII x4 955 & CM Hyper 212+
      • Memory:
      • 2x 4gb Corsair Vengence 1600mhz cas9
      • Storage:
      • 250gb SATA Westerndigital + 500gb samsung +1tb Samsung
      • Graphics card(s):
      • Asus GTX560ti CuII
      • PSU:
      • Be Quiet E9 680w
      • Case:
      • HAF 912+
      • Operating System:
      • W7 Pro
      • Monitor(s):
      • Dell 21" ips something

    Re: Gigabit LAN, real world speeds

    Network switches and structure in general will effect transfer speed because of the load going through the network, granted in most home situations load is pretty low so shouldn't be much impact.

    That's one thing I'll point out, no point getting gigabit if the other end (or the middle) is 100, so if your switch is only 100 then you're not going to get gigabit through it and any other devices talking to each other through the switch will also impact the speed.

  17. #15
    Anthropomorphic Personification shaithis's Avatar
    Join Date
    Apr 2004
    Location
    The Last Aerie
    Posts
    10,836
    Thanks
    645
    Thanked
    870 times in 734 posts
    • shaithis's system
      • Motherboard:
      • Asus P8Z77 WS
      • CPU:
      • i7 3770k @ 4.5GHz
      • Memory:
      • 32GB HyperX 1866
      • Storage:
      • Lots!
      • Graphics card(s):
      • Sapphire Fury X
      • PSU:
      • Corsair HX850
      • Case:
      • Corsair 600T (White)
      • Operating System:
      • Windows 10 x64
      • Monitor(s):
      • 2 x Dell 3007
      • Internet:
      • Zen 80Mb Fibre

    Re: Gigabit LAN, real world speeds

    There really shouldn't be any issue maxing GBe with todays hardware, even a cheap NAS. ~120MB/s should be possible, assuming the network path isn't doing anything else.
    Main PC: Asus Rampage IV Extreme / 3960X@4.5GHz / Antec H1200 Pro / 32GB DDR3-1866 Quad Channel / Sapphire Fury X / Areca 1680 / 850W EVGA SuperNOVA Gold 2 / Corsair 600T / 2x Dell 3007 / 4 x 250GB SSD + 2 x 80GB SSD / 4 x 1TB HDD (RAID 10) / Windows 10 Pro, Yosemite & Ubuntu
    HTPC: AsRock Z77 Pro 4 / 3770K@4.2GHz / 24GB / GTX 1080 / SST-LC20 / Antec TP-550 / Hisense 65k5510 4K TV / HTC Vive / 2 x 240GB SSD + 12TB HDD Space / Race Seat / Logitech G29 / Win 10 Pro
    HTPC2: Asus AM1I-A / 5150 / 4GB / Corsair Force 3 240GB / Silverstone SST-ML05B + ST30SF / Samsung UE60H6200 TV / Windows 10 Pro
    Spare/Loaner: Gigabyte EX58-UD5 / i950 / 12GB / HD7870 / Corsair 300R / Silverpower 700W modular
    NAS 1: HP N40L / 12GB ECC RAM / 2 x 3TB Arrays || NAS 2: Dell PowerEdge T110 II / 24GB ECC RAM / 2 x 3TB Hybrid arrays || Network:Buffalo WZR-1166DHP w/DD-WRT + HP ProCurve 1800-24G
    Laptop: Lenovo Flex 2 / 12GB RAM / 240GB Corsair Force 3 Printer: HP CP1515n || Phone: HTC One U11 || Other: Samsung Galaxy Tab 4 Pro 10.1 CM12.1 / Playstation 4 + G29 + 2TB Hybrid drive

  18. #16
    root Member DanceswithUnix's Avatar
    Join Date
    Jan 2006
    Location
    In the middle of a core dump
    Posts
    10,005
    Thanks
    496
    Thanked
    1,032 times in 876 posts
    • DanceswithUnix's system
      • Motherboard:
      • Asus X470-PRO
      • CPU:
      • 3700X
      • Memory:
      • 16GB 3200MHz
      • Storage:
      • 1TB Linux, 1TB Games (Win 10)
      • Graphics card(s):
      • Asus Strix RX Vega 56
      • PSU:
      • 650W Corsair TX
      • Case:
      • Antec 300
      • Operating System:
      • Fedora 30 + Win 10 Pro 64 (yuk)
      • Monitor(s):
      • Benq XL2730Z 1440p + Samsung 2343BW 2048x1152
      • Internet:
      • Zen 80Mb/20Mb VDSL

    Re: Gigabit LAN, real world speeds

    Quote Originally Posted by Flibb View Post
    Out of interest thought I would try this test.

    Folder containing a 1.82GB AVI file, takes 58 sec to copy from my ageing ReadyNas Duo to the SSD on my Win7 64 desktop PC.

    But to copy back takes 8 minutes. Havent a clue why, then again havent had a coffee yet either.

    Network is a netgear 8 port prosafe (PC and redynas plugged into this) with a Billion BiPAC 7700N wireless router / adsl2 modem thing handling the internet.

    Right time for a coffee, instant or do I warm the espresso machine up and fire up the grinder ?
    The NAS shouldn't acknowledge it has seen data until it is safely stored in the raid array. At that point it sends the acknowledgement to the client which can send more data. On a cheap NAS that can really hurt performance because latency is everything and the low end CPU just can't keep up. More expensive units can ack once the data is safely in battery backed RAM.

Page 1 of 3 123 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
