    Dell PowerConnect 2716 dead PSU

    Wouldn't you know it I smell something burning and it turns out to be the PSU in one of my switches.

    A quick google reveals it's a common problem with the Delta ADP-40VP PSU, link.

    I've tested the fuse on the PCB and it hasn't popped however the PCB around the failed cap and lower MOSFET looked burnt so I'm wondering if it's worth attempting to repair or just replace the PSU and hope for the best?

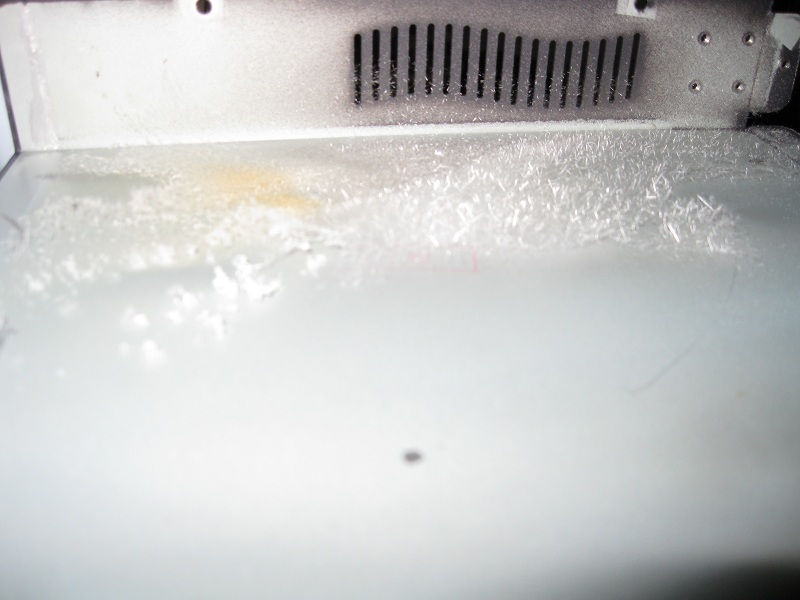

    Some pics:






  2. #2
    Senior Member
    Join Date
    May 2008
    Posts
    215
    Thanks
    10
    Thanked
    16 times in 13 posts
    • rs4847's system
      • Motherboard:
      • Intel DZ77GA-70K
      • CPU:
      • Intel i7-3770K + Corsair H80
      • Memory:
      • 32GB Corsair Vengeance CMZ32GX3M4X1600C10
      • Storage:
      • Samsung 850 Pro 256GB SSD, 2x4TB Hitachi Deskstar NAS RAID1, Sony DRU-875S DVD Rewriter
      • Graphics card(s):
      • EVGA GTX1070 FTW 8GB
      • PSU:
      • CoolerMaster RealPower M700
      • Case:
      • CoolerMaster Cosmos RC-1000
      • Operating System:
      • Windows 10 Pro x64
      • Monitor(s):
      • HP LP2475w + Ilyama ProLite E2473HS
      • Internet:
      • VirginMedia 200Mb Gamer

    Re: Dell PowerConnect 2716 dead PSU

    Well I decided to replace the PSU.

    Ordered an Artesyn NLP40-7605J PSU from Farnell (PN:1516423) for £40.98 delivered also available from RS (PN:629-5721).

    Side by side (Delta ADP-40VP top, Artesyn NLP40-7605J bottom):



    Now looking at it the Artesyn PSU has the input power polarity reversed, however I doubled checked the polarity with the IEC C13/C14 connectors and cables and it's the Delta that's reversed, black is live and beige is neutral at least on my 2716 so no rewiring was necessary, I always like to observe polarity even if it's not required. The Artesyn also has a easily replaceable fuse and a few Rubycon caps so I would expect it to last longer than the Delta.

    I checked the output from the Artesyn and it was a stable 5.00v DC then rebuilt my switch.

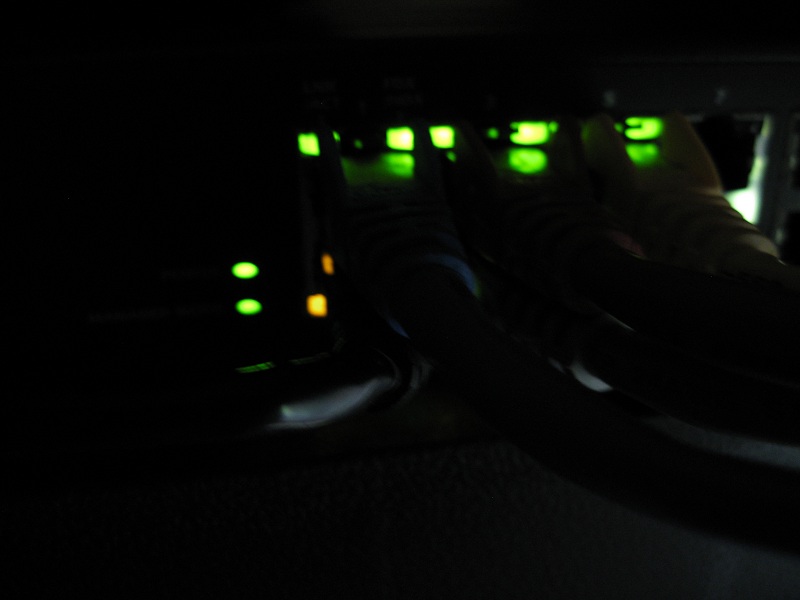

    Working again:



    If this was an 10/100 fast ethernet switch then I probably wouldn't of bothered repairing it, however the Delta ADP-40VP PSU powers quite a few gigabit 16/24 port switches as well and considered my 2716 worth saving from the scrapheap. My 2708 doesn't share the same PSU unfortunately though it's another Delta this time a ADP-30JP, I just hope it's as easily replaceable if or when the time comes.

  3. #3
    Senior Member FatalSaviour's Avatar
    Join Date
    Jun 2004
    Location
    London/Oxford/York
    Posts
    1,876
    Thanks
    42
    Thanked
    12 times in 11 posts
    • FatalSaviour's system
      • Motherboard:
      • MSI P55-GD80
      • CPU:
      • Intel Core i7 860
      • Memory:
      • 4x2GB GEiL PC17000
      • Storage:
      • 3x1000GB, 2x500GB (RAID1), 1x2TB
      • Graphics card(s):
      • GTX 470
      • PSU:
      • Corsair HX700
      • Case:
      • Antec P180
      • Operating System:
      • Win 7 x64
      • Monitor(s):
      • Dell U2311, Dell 2005FPW
      • Internet:
      • VM 30Mb

    Re: Dell PowerConnect 2716 dead PSU

    Nice thread rs - very inspiring. Fortunately I've not had a PSU die on any of our Dell switches, but it's good to see someone not prepared to simply chuck them or send them off for repair!
    Quote Originally Posted by Noni
    What the hell does "WTH" mean


  4. #4
    Almost Ex-HEXUS Staff Jonatron's Avatar
    Join Date
    Sep 2009
    Location
    London
    Posts
    505
    Thanks
    43
    Thanked
    150 times in 94 posts

    Re: Dell PowerConnect 2716 dead PSU

    Had a Dell PowerConnect 2716 die yesterday, replaced capacitor C3, and it works again!

  5. #5
    Senior Member
    Join Date
    May 2008
    Posts
    215
    Thanks
    10
    Thanked
    16 times in 13 posts
    • rs4847's system
      • Motherboard:
      • Intel DZ77GA-70K
      • CPU:
      • Intel i7-3770K + Corsair H80
      • Memory:
      • 32GB Corsair Vengeance CMZ32GX3M4X1600C10
      • Storage:
      • Samsung 850 Pro 256GB SSD, 2x4TB Hitachi Deskstar NAS RAID1, Sony DRU-875S DVD Rewriter
      • Graphics card(s):
      • EVGA GTX1070 FTW 8GB
      • PSU:
      • CoolerMaster RealPower M700
      • Case:
      • CoolerMaster Cosmos RC-1000
      • Operating System:
      • Windows 10 Pro x64
      • Monitor(s):
      • HP LP2475w + Ilyama ProLite E2473HS
      • Internet:
      • VirginMedia 200Mb Gamer

    Re: Dell PowerConnect 2716 dead PSU

    Quote Originally Posted by FatalSaviour View Post
    Nice thread rs - very inspiring. Fortunately I've not had a PSU die on any of our Dell switches, but it's good to see someone not prepared to simply chuck them or send them off for repair!
    Thanks!

    Quote Originally Posted by Jonatron View Post
    Had a Dell PowerConnect 2716 die yesterday, replaced capacitor C3, and it works again!
    Glad the C3 replacement worked for you, my PSU looked too far gone to considering it.

  6. #6
    Registered User
    Join Date
    Feb 2013
    Posts
    1
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    I had a power supply go bad in my Dell Power Connect 2808 and it had a ADP-30JP in it. I was able to find a power supply from Jameco electronics that had the same specs and was mostly a plug in replacement though the screw holes did not all line up. $24 shipped, was way less than any other replacement ps I could find and I didn't want to try my hand at soldering . I used the open frame Mean Well PS-35-5 part number 1918972. Hopefully that will help someone out there.

  7. #7
    Technojunkie
    Join Date
    May 2004
    Location
    Up North
    Posts
    2,571
    Thanks
    234
    Thanked
    213 times in 138 posts

    Re: Dell PowerConnect 2716 dead PSU

    This thread came up in google for "powerconnect 2716", and I was just about to look around for a replacement PSU but thought I'd try replacing C3 in the PSU:
    - checked the voltage was 5V output across the red/black output afterwards
    then reconnected the circuit board and all is now working again !
    Chrome & Firefox addons for BBC News
    Follow me @twitter

  8. #8
    Registered User
    Join Date
    Sep 2013
    Posts
    1
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    I had same problem as above: changing C3 solves problem, switch is working again :-)

  9. #9
    Registered User
    Join Date
    Nov 2013
    Posts
    1
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    My 2716 died yesterday and I ended up on this topic after searching for a possible fix.

    I'm going to try finding someone with soldering experience to see if replacing the C3 capacitor will fix the PSU, but I'll probably just end up ordering a new PSU to give a few more years of life to this switch.

    I've noticed that RS has the PSU Artesyn NLP40-7605J at £13.86 while Farnell price is £35.85.

    Anyone willing to order it from RS and ship it to Portugal? I'll cover all expenses and pay in advance of course. Thanks!

  10. #10
    Registered User
    Join Date
    Mar 2015
    Posts
    2
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    Hi folks, first post here.
    Seems my 2716 developed the same problem that some of you have experienced. Dead PS. Upon searching a bit, I stumbled upon this thread, and there is a description of "replacing C3" ... As I analyzed the circuit, I located C3, which is a tiny green 47uf cap next to the big switching XFO, the large 400v 100 uF cap is C1, so as I was removing it, one of the legs just fell off! The PCB is a bit yellowish around that are but not as darkened at the picture of the OP.

    Mind you, "TAICON" caps don't inspire much reliability, so I was thinking of replacing both C1 and C3, but a radial 400v 100 uF cap is a pretty hard value to locate. Mouser has a few (Nichicon) but specs indicate they will be too big to fit in the tight space allocated...

    To those who successfully revived the PS, what cap brands did you use? Any other parts I should be looking at replacing also?
    I would have posted a photo but it seems i'm not allowed.
    Thanks!
    Robert in Montreal

  11. #11
    Registered User
    Join Date
    May 2015
    Posts
    2
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    Quote Originally Posted by roddenberry View Post
    Hi folks, first post here.
    Seems my 2716 developed the same problem that some of you have experienced. Dead PS. Upon searching a bit, I stumbled upon this thread, and there is a description of "replacing C3" ... As I analyzed the circuit, I located C3, which is a tiny green 47uf cap next to the big switching XFO, the large 400v 100 uF cap is C1, so as I was removing it, one of the legs just fell off! The PCB is a bit yellowish around that are but not as darkened at the picture of the OP.

    Mind you, "TAICON" caps don't inspire much reliability, so I was thinking of replacing both C1 and C3, but a radial 400v 100 uF cap is a pretty hard value to locate. Mouser has a few (Nichicon) but specs indicate they will be too big to fit in the tight space allocated...
    Hi, it is also for me the first post.

    I have a power supply dead, and the capacitor C1 is not working (tested with a capacimeter).
    Now I have ordered this capacitor in RS Components, # 840-4738.
    It has the same value and the same size, as soon I have replaced it, I'll post an update.

    Regards

    Marco

  12. #12
    Registered User
    Join Date
    May 2015
    Posts
    2
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    Quote Originally Posted by pollix View Post
    Hi, it is also for me the first post.

    I have a power supply dead, and the capacitor C1 is not working (tested with a capacimeter).
    Now I have ordered this capacitor in RS Components, # 840-4738.
    It has the same value and the same size, as soon I have replaced it, I'll post an update.

    Regards

    Marco
    Ok... replaced the capacitor, nothing change.: it remains dead.
    So now I'll replace all the power supply: is faster and cheaper.

    Regards.

    Marco

  13. #13
    Registered User
    Join Date
    Nov 2015
    Posts
    1
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    I had similar problem with my PowerConnect 2716: dead PSU.

    Fuse F1 was blown. Bridge rectifier (on opposite side of PCB next to heatsink) had internal short. Replaced both but still not working.

    But from reading this thread, I took a closer look at the large capacitor and it indeed looks bad, too. Once I find a replacement, I hope that'll get the switch up and running again.

    Jon

  14. #14
    Admin Team peterb's Avatar
    Join Date
    Aug 2005
    Location
    Southampton
    Posts
    17,785
    Thanks
    2,373
    Thanked
    2,907 times in 2,320 posts
    • peterb's system
      • Motherboard:
      • Nascom 2
      • CPU:
      • Z80B
      • Memory:
      • 48K 8 bit memory on separate card
      • Storage:
      • Audio cassette tape - home built 5.25" floppy drive
      • Graphics card(s):
      • text output (composite video)
      • PSU:
      • Home built
      • Case:
      • Home built
      • Operating System:
      • Nas-sys
      • Monitor(s):
      • 12" monocrome composite video input
      • Internet:
      • No networking capability on this machine

    Re: Dell PowerConnect 2716 dead PSU

    If the capacitor pops, there is a chance it will take the bridge rectifier with it - not always, but sometimes! As an earlier poster said, RS (rswww.com) are a good source of quality components, as is Farnell.
    (\__/)
    (='.'=)
    (")_(")

    Been helped or just 'Like' a post? Use the Thanks button!
    My broadband speed - 750 Meganibbles/minute

  15. #15
    Registered User
    Join Date
    Jun 2016
    Posts
    1
    Thanks
    0
    Thanked
    0 times in 0 posts

    Re: Dell PowerConnect 2716 dead PSU

    In my powerconnect 2724 with the same power supply, I replaced the 25v 47uf capacitor in c3 position with a 50v 47uf capacitor from an old ATX power supply. Works great now. The c1 capacitor child have also been replaced with parts from the ATX psu

  16. #16
    Member
    Join Date
    Aug 2005
    Posts
    94
    Thanks
    5
    Thanked
    4 times in 4 posts

    Re: Dell PowerConnect 2716 dead PSU

    Thanks for the info, I managed to find this info from Google.

    You have helped me revive my 2716!
